RQGBLAN

Fiyat : $108.11

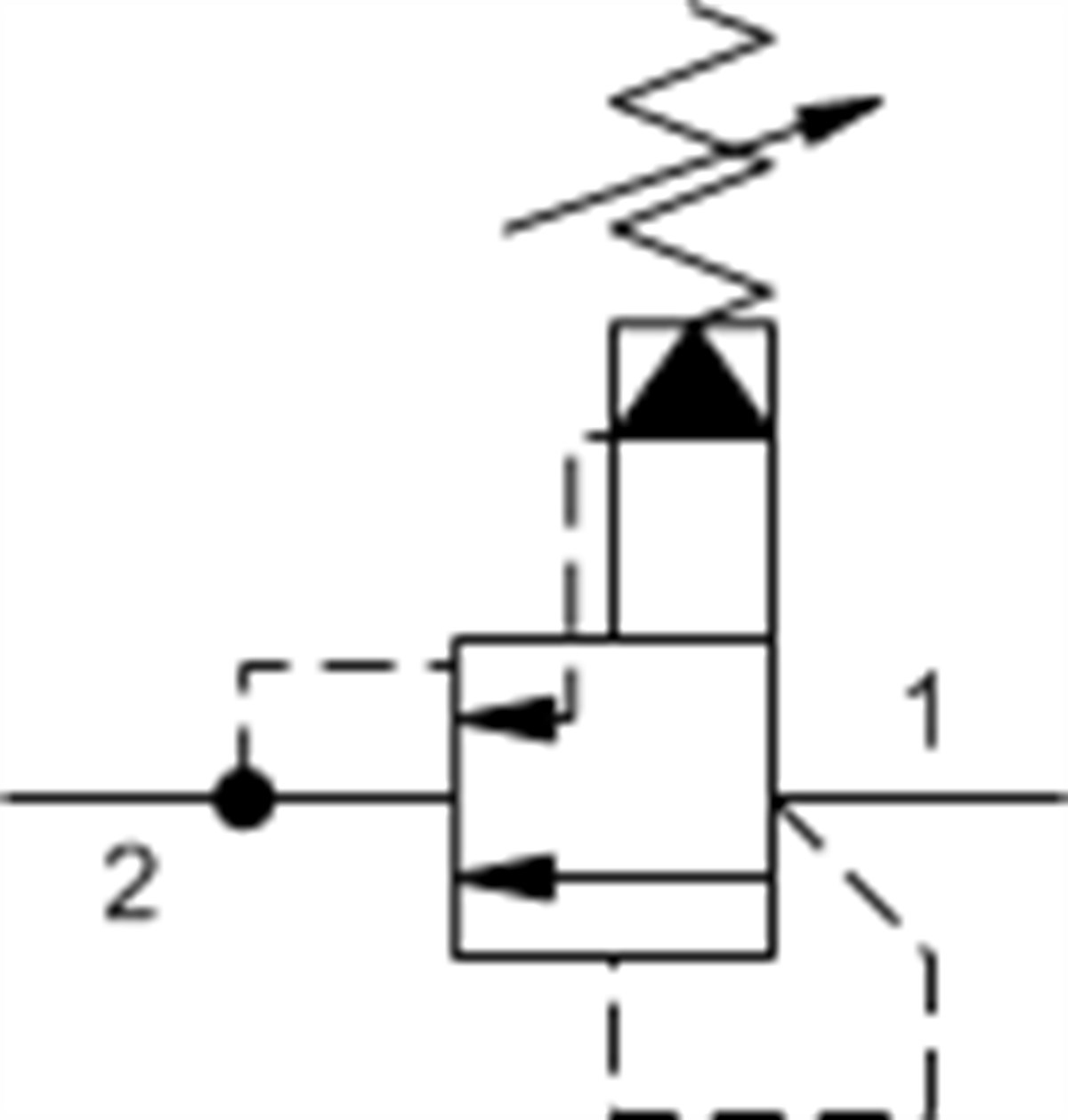

Kick-down, pilot-operated, balanced piston relief valve

:
RQGB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-3A
Series 2
Capacity 50 gpm200 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at Kick down pointKick down point
Maximum Valve Leakage at 110 SUS (24 cSt) 3 in³/min.@1000 psi50 cc/min.@70 bar
Response Time - Typical 25 ms25 ms
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .50 lb0,25 kg
Seal kit - Cartridge Buna: 990203007
Seal kit - Cartridge Polyurethane: 990003002
Seal kit - Cartridge Viton: 990203006


RQGB
Orta Geçirgenlik
150-300 lpm
