RPKSLAN

Fiyat : $407.29

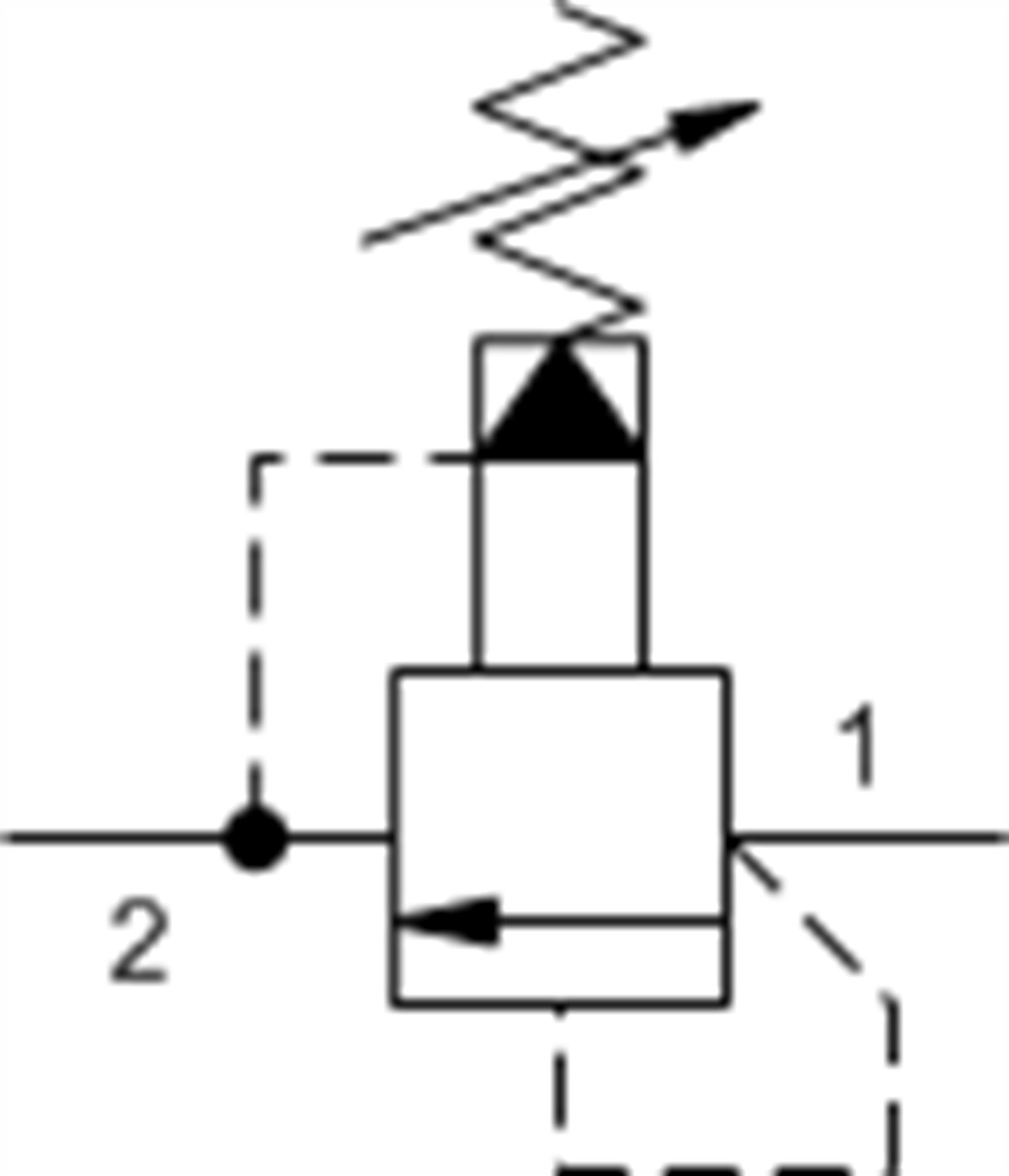

Pilot-operated, balanced poppet relief valve

:
RPKS

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-18A
Series 4
Capacity 200 gpm760 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 4 gpm15 L/min.
Maximum Valve Leakage at Reseat 10 drops/min.0,7 cc/min.
Response Time - Typical 7 ms7 ms
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 2.50 lb1,15 kg
Seal kit - Cartridge Buna: 990318007
Seal kit - Cartridge EPDM: 990318014
Seal kit - Cartridge Polyurethane: 990018002
Seal kit - Cartridge Viton: 990318006


RPKS
Yüksek Geçirgenlik
300-1000 lpm
