RPITLAN

Fiyat : $344.78

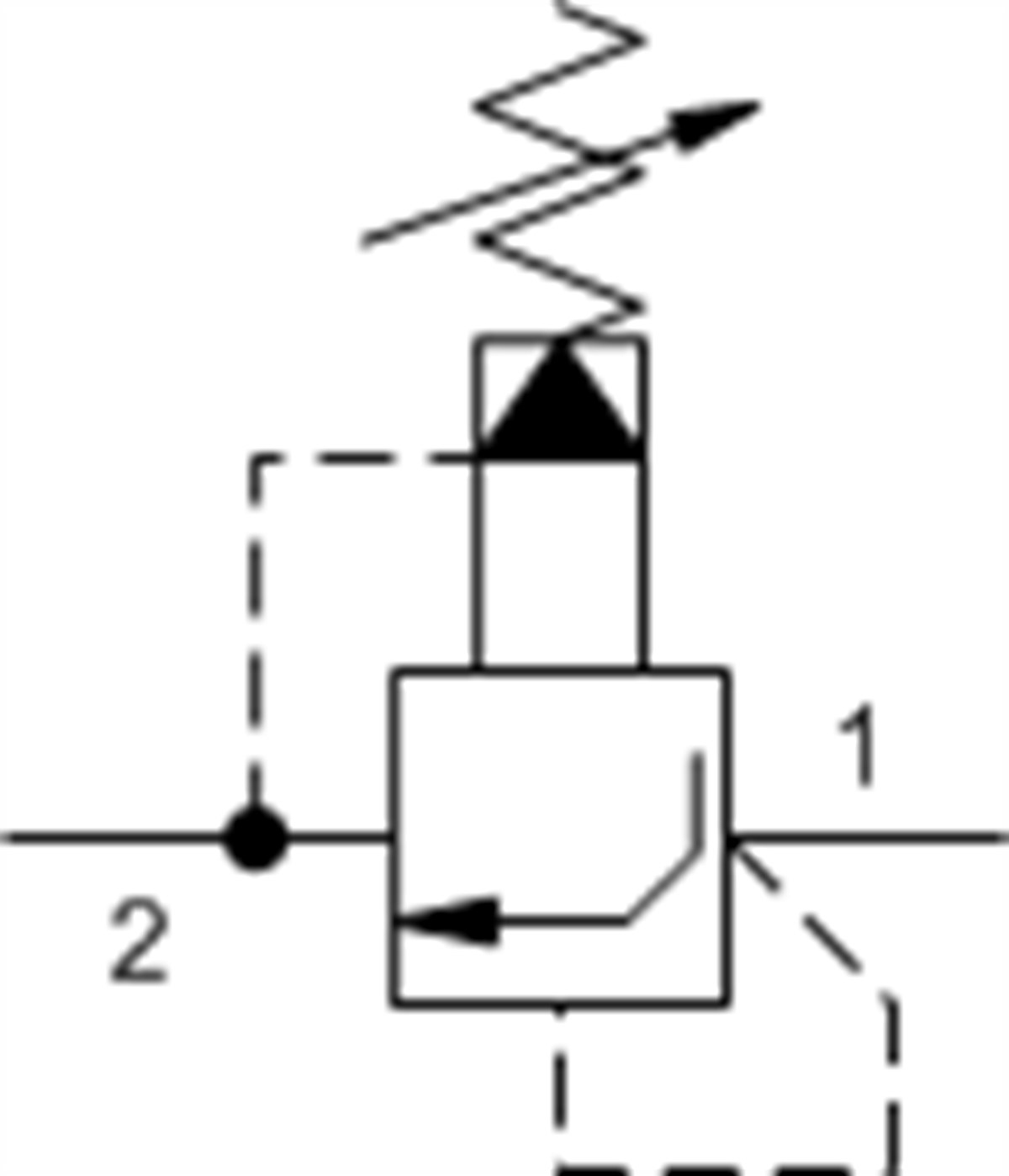

Anti-Shock, pilot-operated, balanced poppet relief valve

:
RPIT

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-16A
Series 3
Capacity 100 gpm380 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 4 gpm15 L/min.
Control Pilot Flow 10 - 25 in³/min.0,16 - 0,41 L/min.
Pressure Ramp Up Time 300 - 500 ms300 - 500 ms
Response Time - Typical 2 ms2 ms
Adjustment - No. of CW Turns from Min. to Max. setting 4.54.5
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 1.00 lb0,45 kg
U.S. Patent # 6,039,0706,039,070
Seal kit - Cartridge Buna: 990316007
Seal kit - Cartridge Viton: 990316006


RPIT
Yüksek Geçirgenlik
300-1000 lpm
