RPISLAN

Fiyat : $210.55

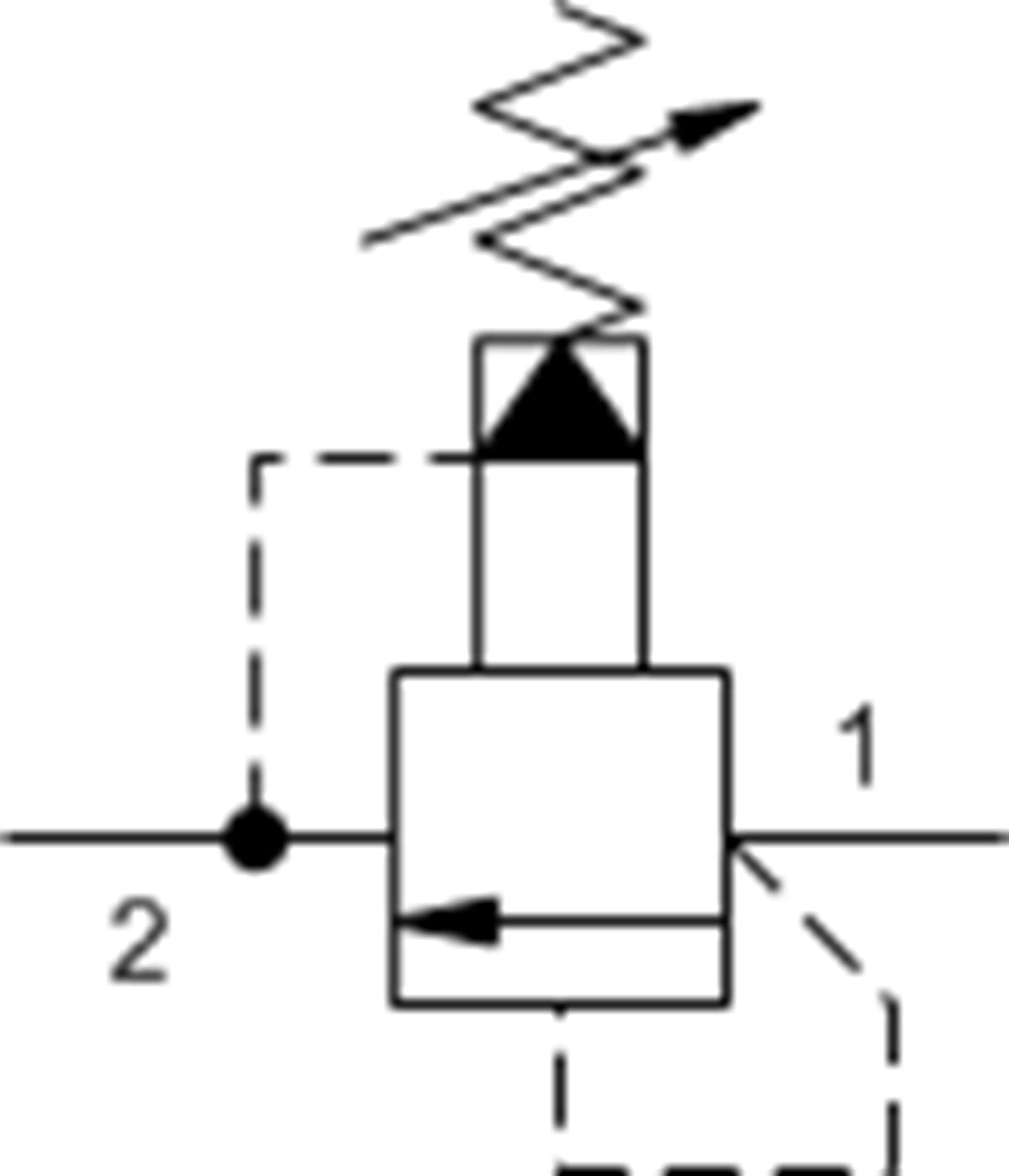

Pilot-operated, balanced poppet relief valve

:
RPIS

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-16A
Series 3
Capacity 100 gpm380 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 4 gpm15 L/min.
Maximum Valve Leakage at Reseat 10 drops/min.0,7 cc/min.
Response Time - Typical 7 ms7 ms
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 1.25 lb0,60 kg
Seal kit - Cartridge Buna: 990316007
Seal kit - Cartridge EPDM: 990316014
Seal kit - Cartridge Viton: 990316006


RPIS
Yüksek Geçirgenlik
300-1000 lpm
