RPIDBBN

Fiyat : $312.99

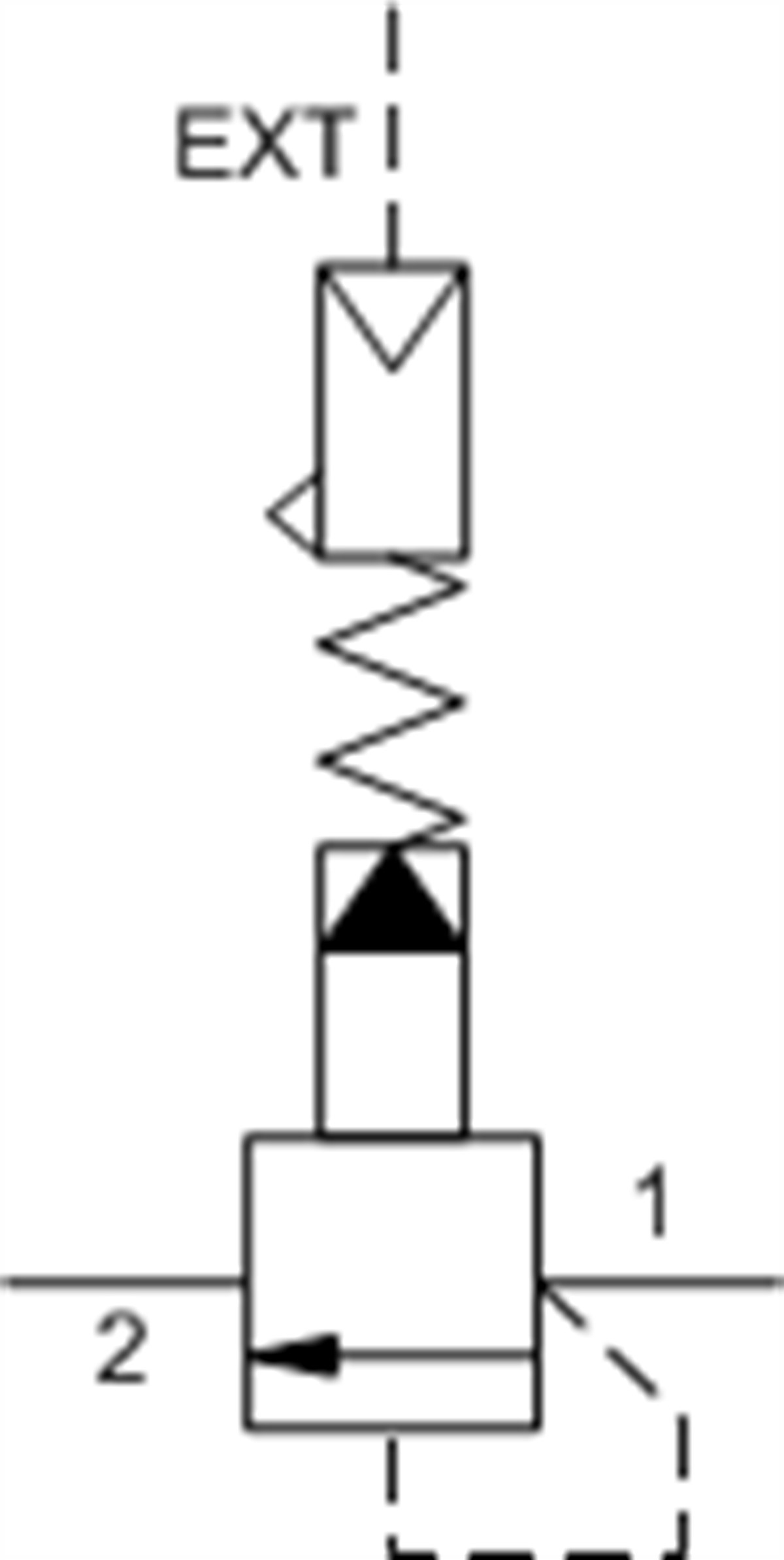

Air-controlled, pilot-operated, balanced piston relief valve

:
RPID

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-16A
Series 3
Capacity 100 gpm380 L/min.
Maximum Operating Pressure 2000 psi140 bar
Pilot Ratio 20:120:1
Hysteresis (with dither) <4%<4%
Maximum Valve Leakage at 110 SUS (24 cSt) 4 in³/min.@1000 psi65 cc/min.@70 bar
Maximum Air Pressure 150 psi10,5 bar
Response Time - Typical 10 ms10 ms
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Model Weight 1.20 lb0,55 kg
Seal kit - Cartridge Buna: 990016007
Seal kit - Cartridge Polyurethane: 990016002
Seal kit - Cartridge Viton: 990016006


RPID
Yüksek Geçirgenlik
300-1000 lpm
