RPGC8WN

Fiyat : $96.87

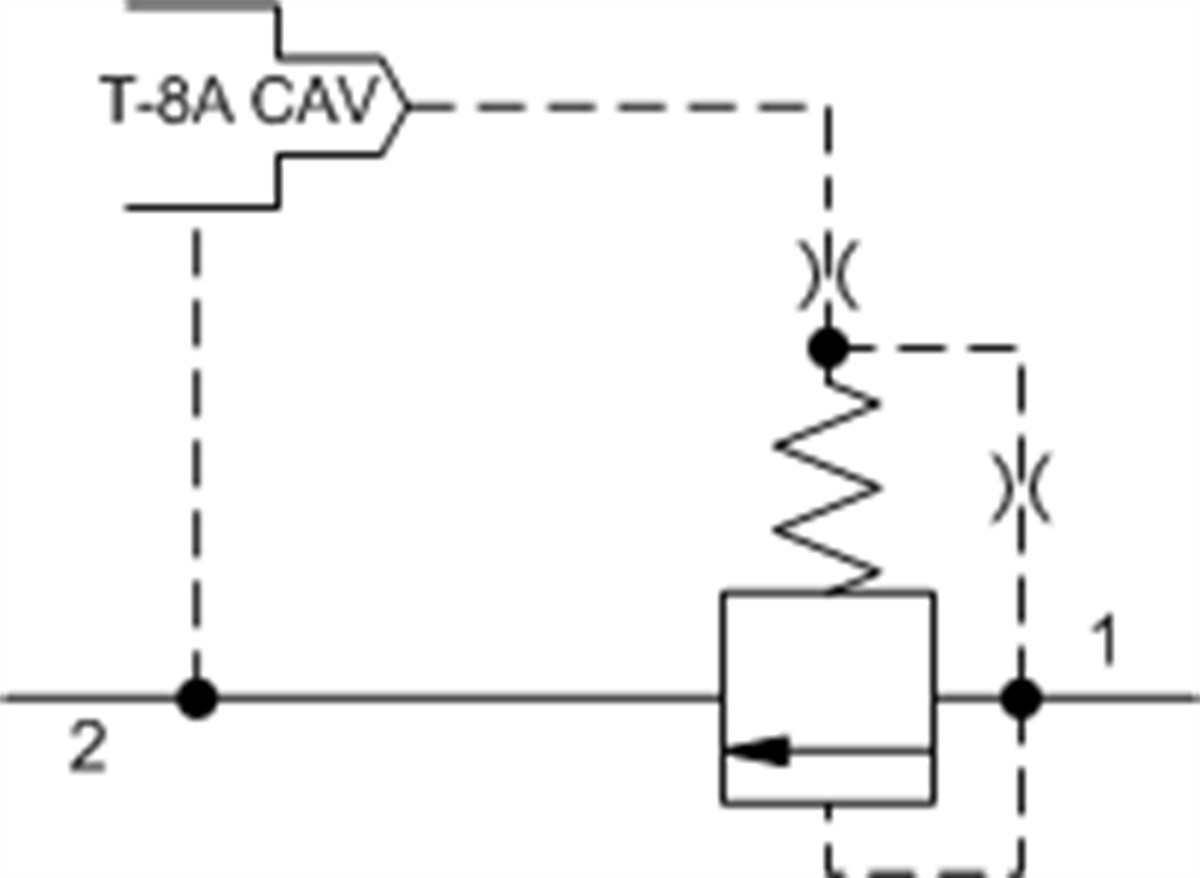

Pilot-operated, balanced piston relief main stage with integral T-8A control cavity

:
RPGC8

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-3A
Series 2
Capacity 50 gpm200 L/min.
Maximum Operating Pressure 5000 psi350 bar
Control Pilot Flow 10 - 15 in³/min.0,16 - 0,25 L/min.
Pilot Control Cavity T-8AT-8A
Main stage leakage at 110 SUS (24 cSt) 3 in³/min.@1000 psi50 cc/min.@70 bar
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Model Weight .50 lb0,25 kg
Seal kit - Cartridge Buna: 990203007
Seal kit - Cartridge EPDM: 990203014
Seal kit - Cartridge Polyurethane: 990003002
Seal kit - Cartridge Viton: 990203006


RPGC8
Orta Geçirgenlik
150-300 lpm
