RDJALAN

Fiyat : $373.14

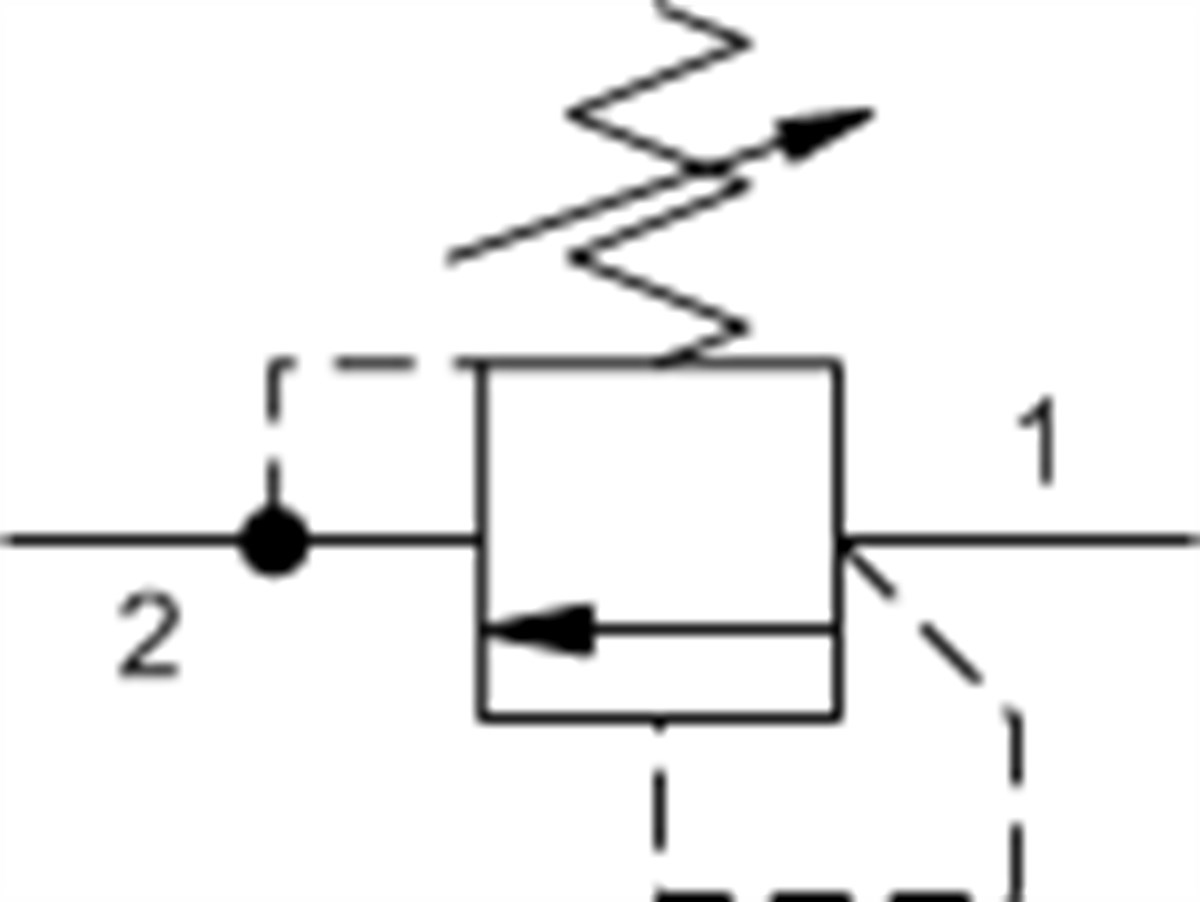

Direct-acting relief valve

:
RDJA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-18A
Series 4
Capacity 200 gpm760 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 4 gpm15 L/min.
Maximum Valve Leakage at Reseat 10 drops/min.0,7 cc/min.
Response Time - Typical 2 ms2 ms
Reseat >90% of setting>90% of setting
Adjustment - No. of CW Turns from Min. to Max. setting 66
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 3.30 lb1,50 kg
Seal kit - Cartridge Buna: 990318007
Seal kit - Cartridge EPDM: 990318014
Seal kit - Cartridge Viton: 990318006


RDJA
Yüksek Geçirgenlik
300-1000 lpm
