RDFALAN

Fiyat : $84.88

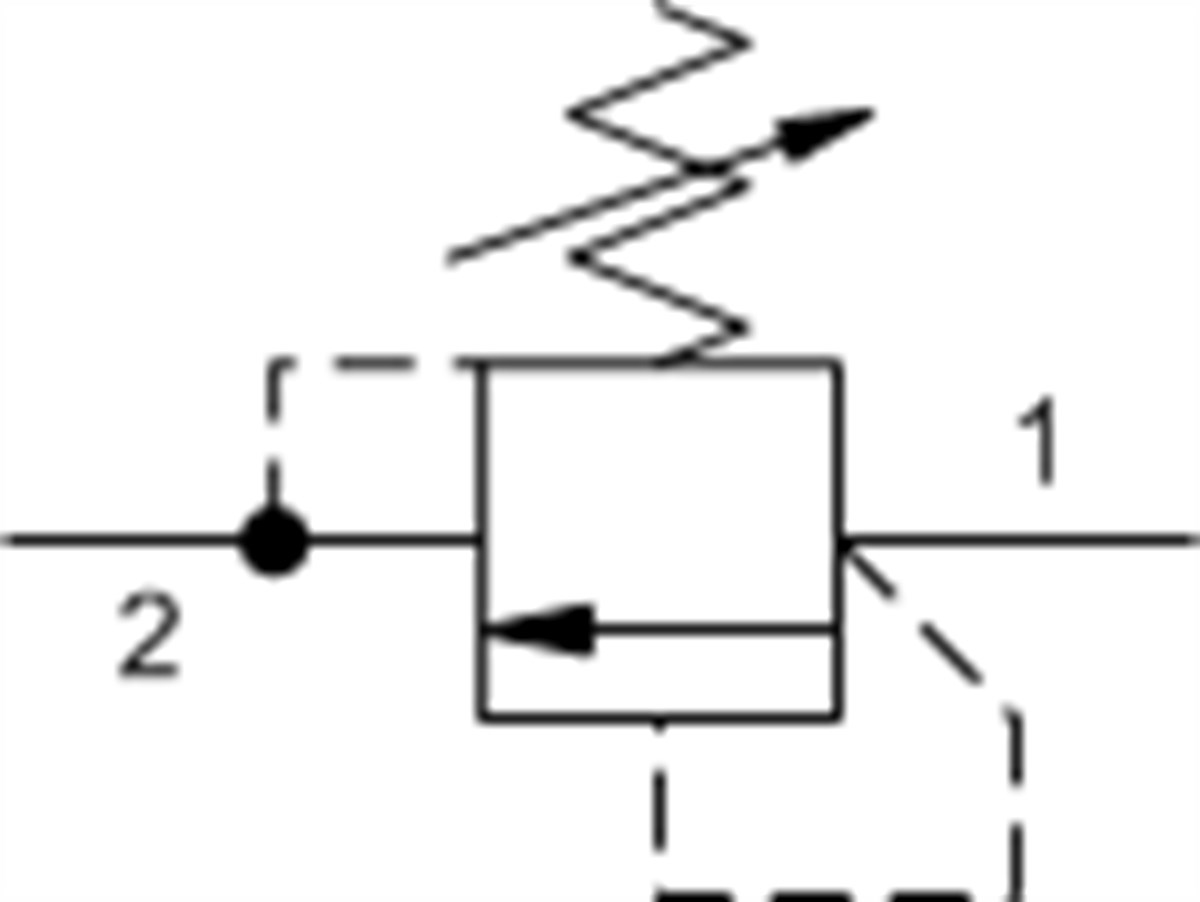

Direct-acting relief valve

:
RDFA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-3A
Series 2
Capacity 50 gpm200 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 4 gpm15 L/min.
Maximum Valve Leakage at Reseat 10 drops/min.0,7 cc/min.
Response Time - Typical 2 ms2 ms
Reseat >90% of setting>90% of setting
Adjustment - No. of CW Turns from Min. to Max. setting 66
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .50 lb0,25 kg
Seal kit - Cartridge Buna: 990303007
Seal kit - Cartridge EPDM: 990303014
Seal kit - Cartridge Polyurethane: 990303002
Seal kit - Cartridge Viton: 990303006


RDFA
Orta Geçirgenlik
150-300 lpm
