RBAELWN

Fiyat : $71.29

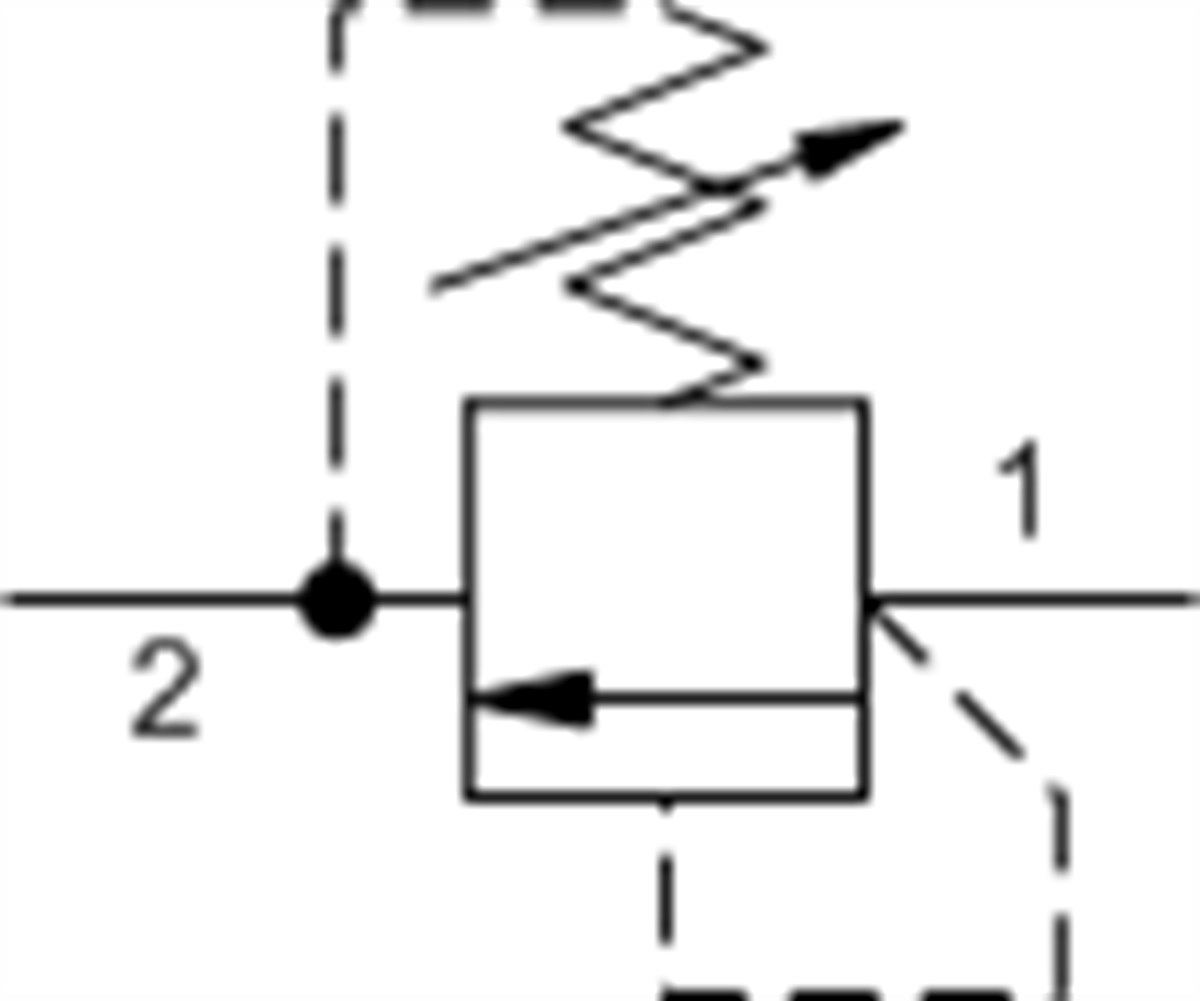

Direct-acting relief valve - pilot capacity

:
RBAE

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-8A
Series P
Capacity 2.5 gpm10 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 2 in³/min.30 cc/min.
Maximum Valve Leakage at 110 SUS (24 cSt) 15 drops/min.1 cc/min.
Response Time - Typical 2 ms2 ms
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Seal kit - Cartridge Buna: 990608007
Seal kit - Cartridge EPDM: 990608014
Seal kit - Cartridge Polyurethane: 990008002
Seal kit - Cartridge Viton: 990608006


RBAE
Düşük Geçirgenlik
0-150 lpm
