PRFBLAN

Fiyat : $125.67

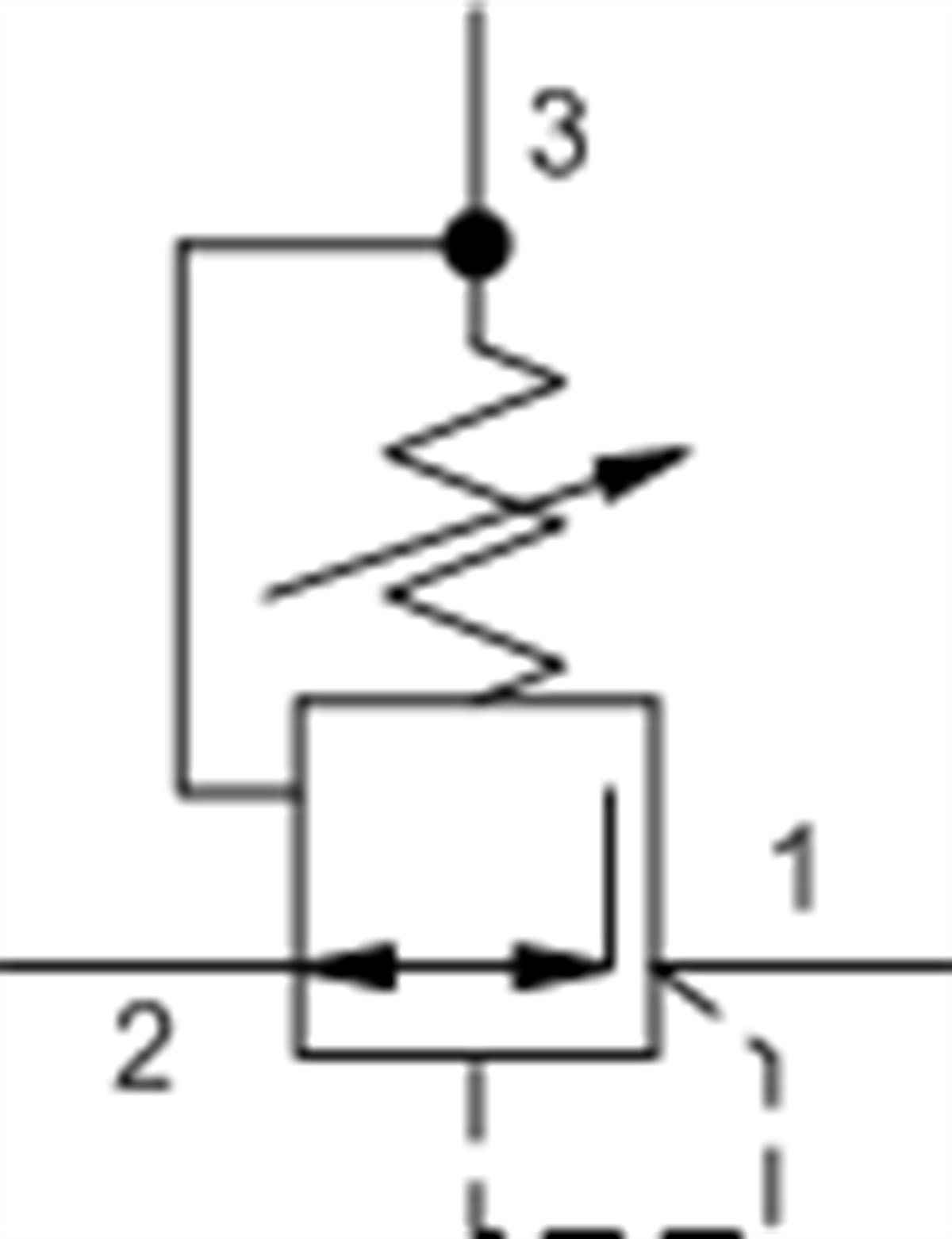

Direct-acting, pressure reducing/relieving valve

:
PRFB

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-2A
Series 2
Capacity 20 gpm80 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 0.25 gpm0.25 gpm
Maximum Valve Leakage at 110 SUS (24 cSt) 3 in³/min.50 cc/min.
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .60 lb0,30 kg
Seal kit - Cartridge Buna: 990202007
Seal kit - Cartridge Polyurethane: 990002002
Seal kit - Cartridge Viton: 990202006


PRFB
Düşük Geçirgenlik
0-150 lpm
