MWGAXLV

Fiyat : $302.28

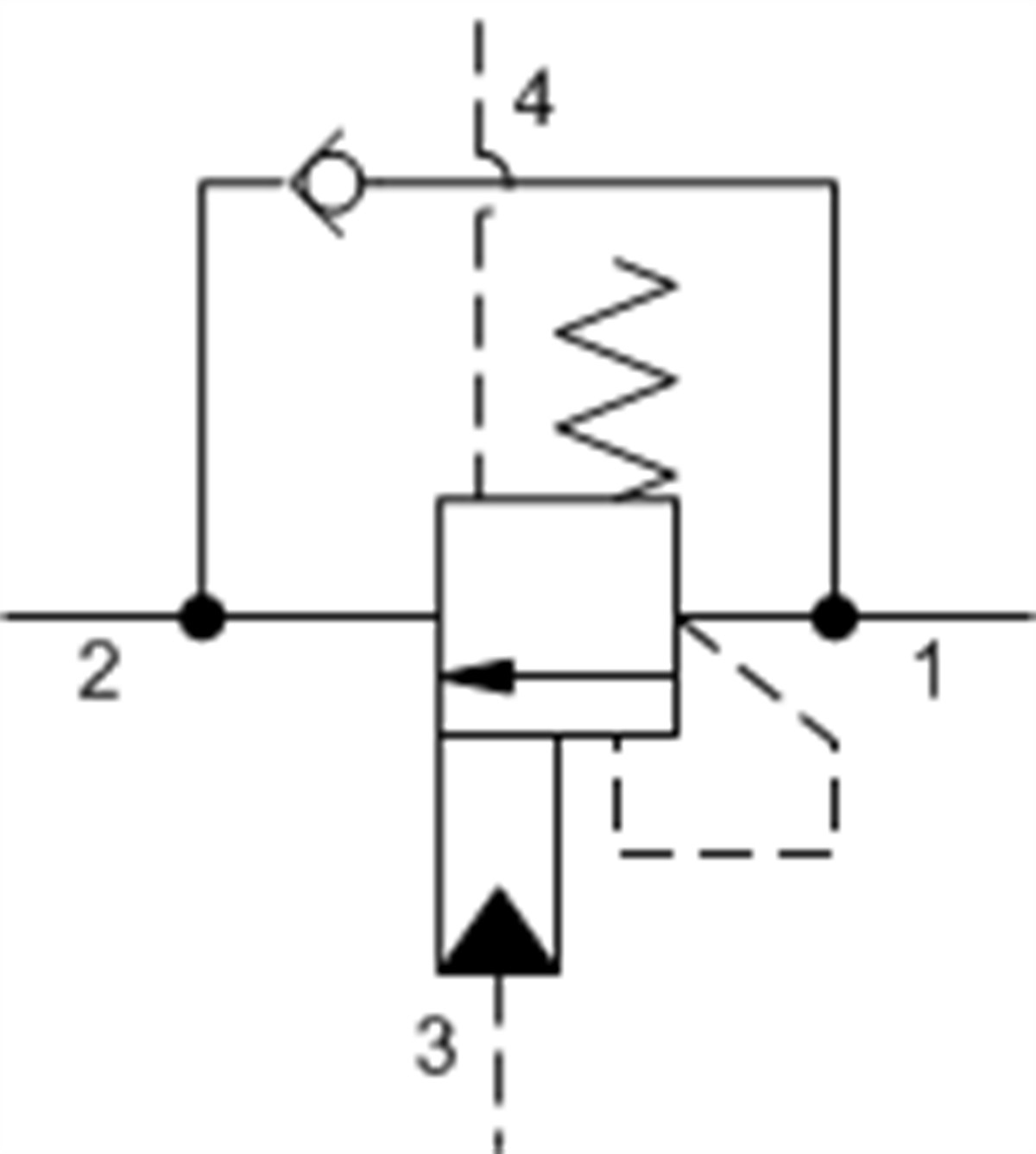

Fixed setting, vented, 3:1 pilot ratio, load reactive, load control valve

:
MWGAX

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-23A
Series 3
Capacity 60 gpm240 L/min.
Maximum Operating Pressure 5000 psi350 bar
Pilot Ratio 3:13:1
Maximum Recommended Load Pressure See Technical FeaturesSee Technical Features
Factory Pressure Settings Established at 2 in³/min.30 cc/min.
Maximum Valve Leakage at Reseat 5 drops/min.0,3 cc/min.
Check Cracking Pressure 25 psi1,7 bar
Reseat ≥77% of setting≥77% of setting
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Seal kit - Cartridge Buna: 990023007
Seal kit - Cartridge Polyurethane: 990023002
Seal kit - Cartridge Viton: 990023006


MWGAX
Orta Geçirgenlik
150-300 lpm
