MBIAXMV

Fiyat : $558.00

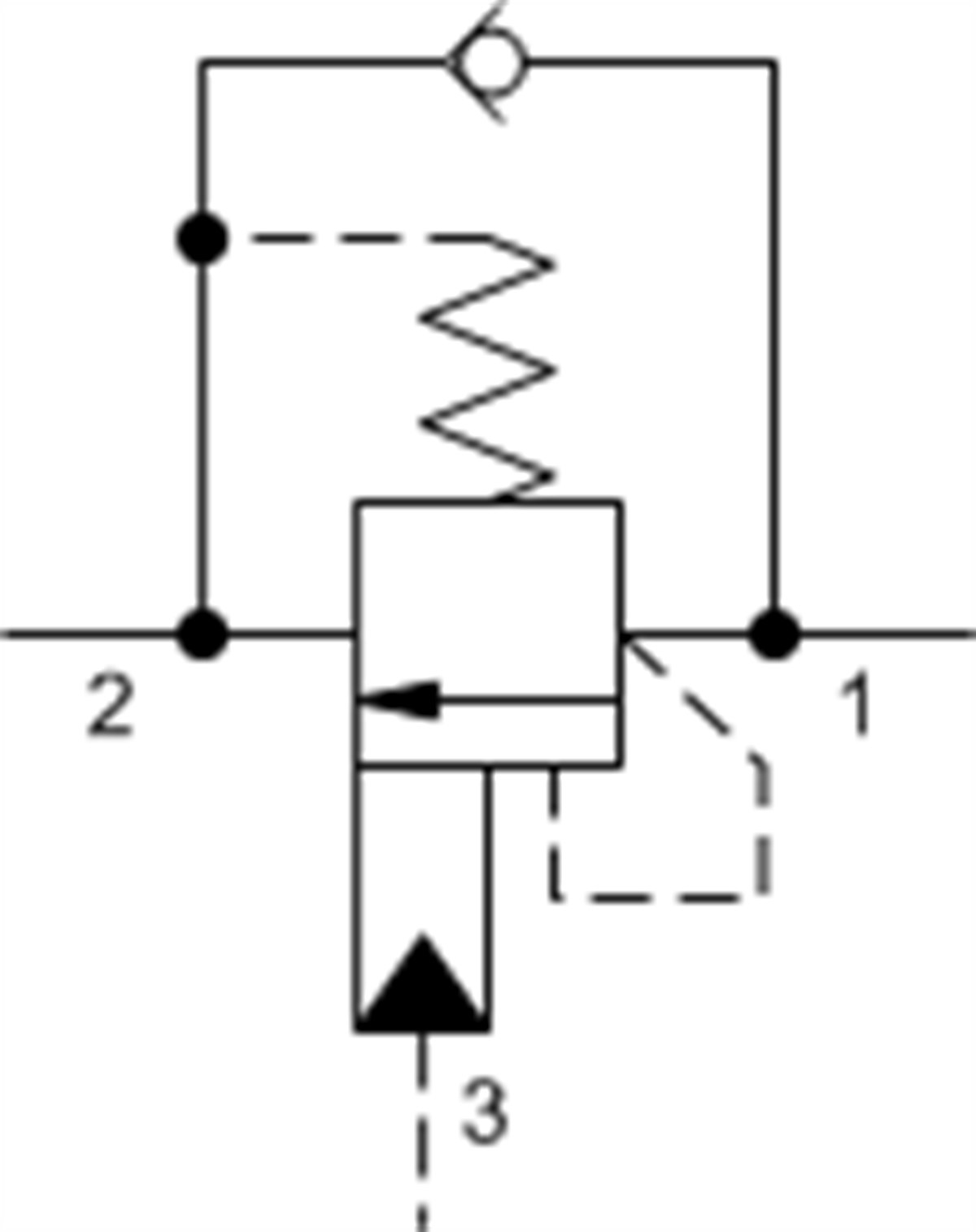

Fixed setting, 3:1 pilot ratio, load reactive, load control valve

:
MBIAX

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-19A
Series 4
Capacity 120 gpm480 L/min.
Maximum Operating Pressure 5000 psi350 bar
Pilot Ratio 3:13:1
Maximum Recommended Load Pressure See Technical FeaturesSee Technical Features
Factory Pressure Settings Established at 2 in³/min.30 cc/min.
Maximum Valve Leakage at Reseat 5 drops/min.0,3 cc/min.
Check Cracking Pressure 25 psi1,7 bar
Reseat ≥77% of setting≥77% of setting
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Seal kit - Cartridge Buna: 990019007
Seal kit - Cartridge Polyurethane: 990019002
Seal kit - Cartridge Viton: 990019006


MBIAX
Yüksek Geçirgenlik
300-1000 lpm
