LOHCXDN

Fiyat : $146.65

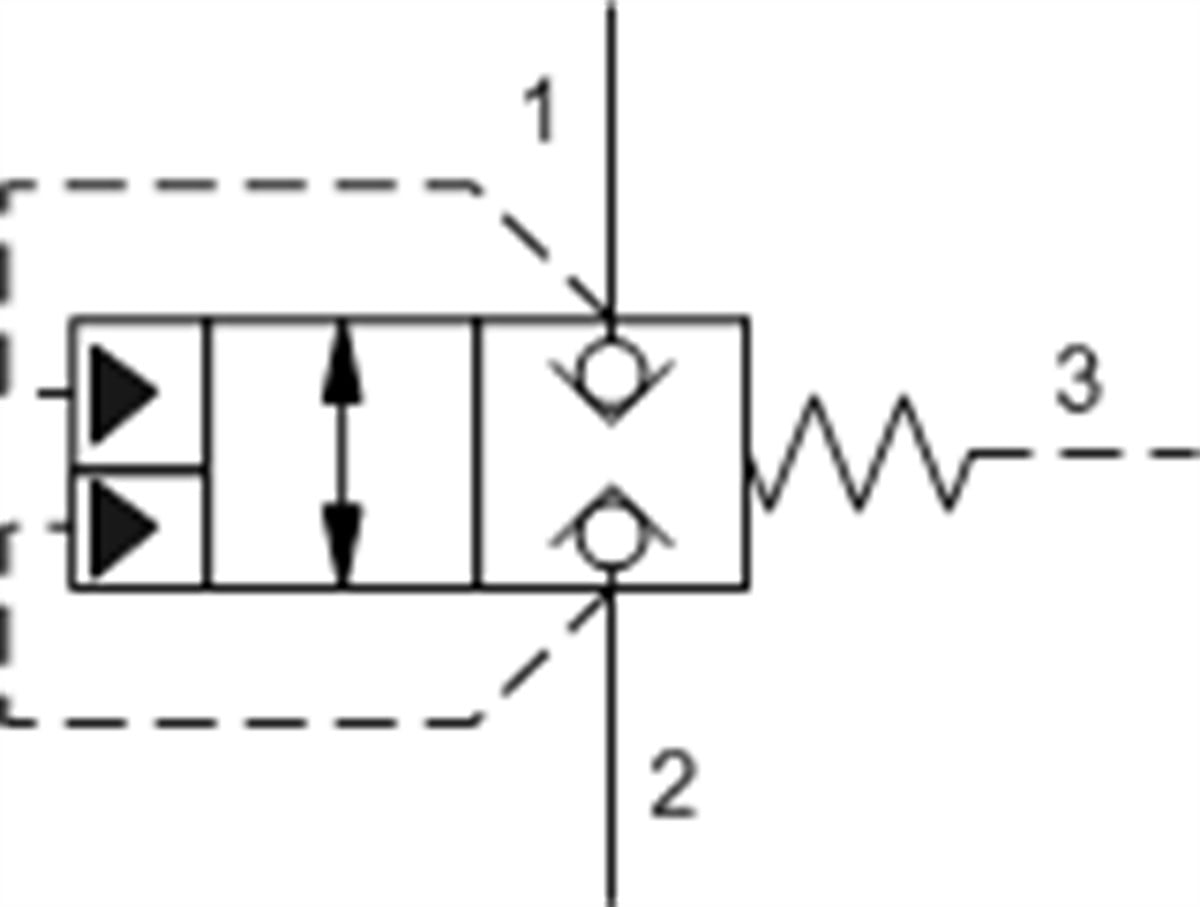

Pilot-to-close, spring-biased closed, unbalanced poppet logic element

:
LOHC

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-17A
Series 3
Capacity 100 gpm380 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.0,7 cc/min.
Pilot Volume Displacement .25 in³4,1 cc
Pilot Passage into Valve .06 in.1,50 mm
Area Ratio, A3 to A1 1.8:11.8:1
Area Ratio, A3 to A2 2.25:12.25:1
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Seal kit - Cartridge Buna: 990017007
Seal kit - Cartridge EPDM: 990017014
Seal kit - Cartridge Polyurethane: 990017002
Seal kit - Cartridge Viton: 990017006


LOHC
Yüksek Geçirgenlik
300-1000 lpm
