LODCXDN

Fiyat : $59.09

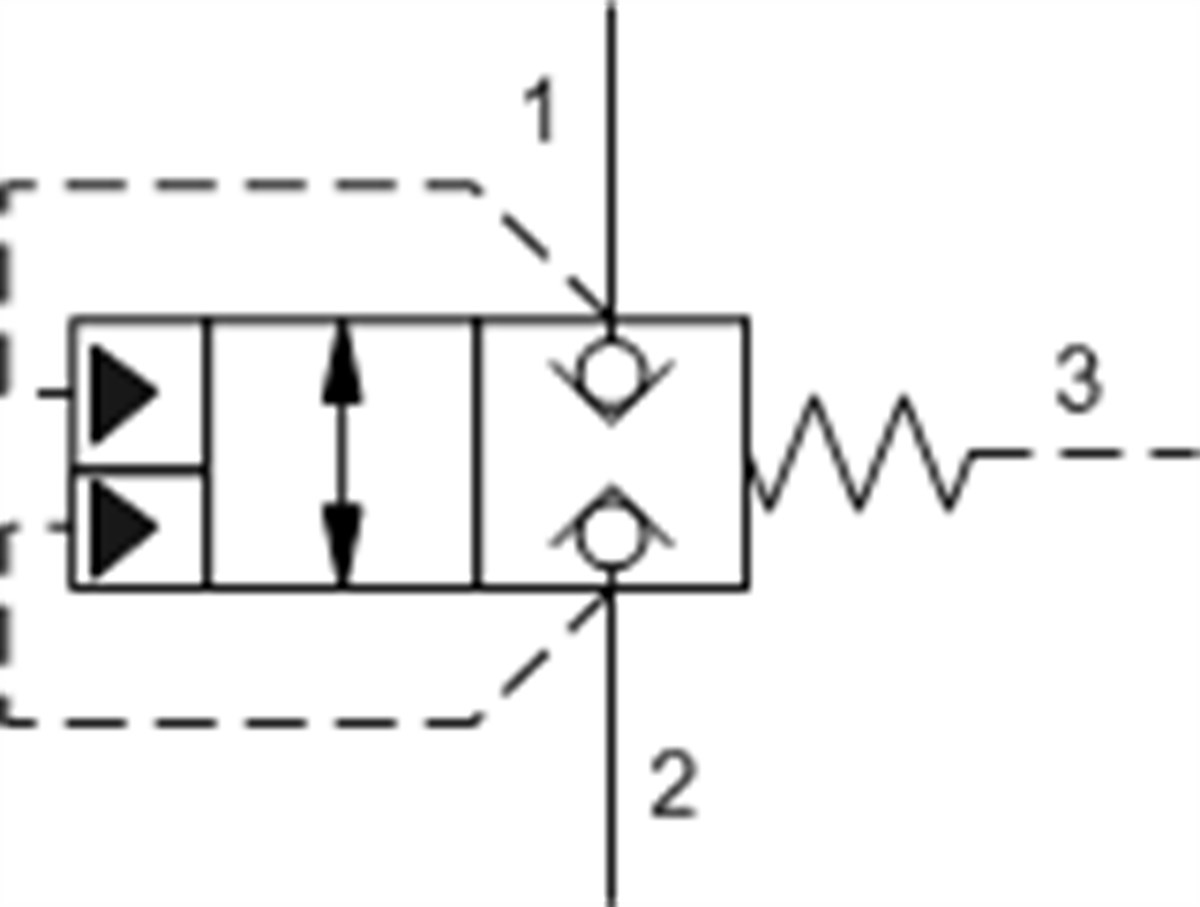

Pilot-to-close, spring-biased closed, unbalanced poppet logic element

:
LODC

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-11A
Series 1
Capacity 25 gpm95 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.0,7 cc/min.
Pilot Volume Displacement .04 in³0,66 cc
Pilot Passage into Valve .031 in.0,8 mm
Area Ratio, A3 to A1 1.8:11.8:1
Area Ratio, A3 to A2 2.25:12.25:1
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Seal kit - Cartridge Buna: 990011007
Seal kit - Cartridge Polyurethane: 990011002
Seal kit - Cartridge Viton: 990011006


LODC
Düşük Geçirgenlik
0-150 lpm
