LKFCXDN

Fiyat : $89.16

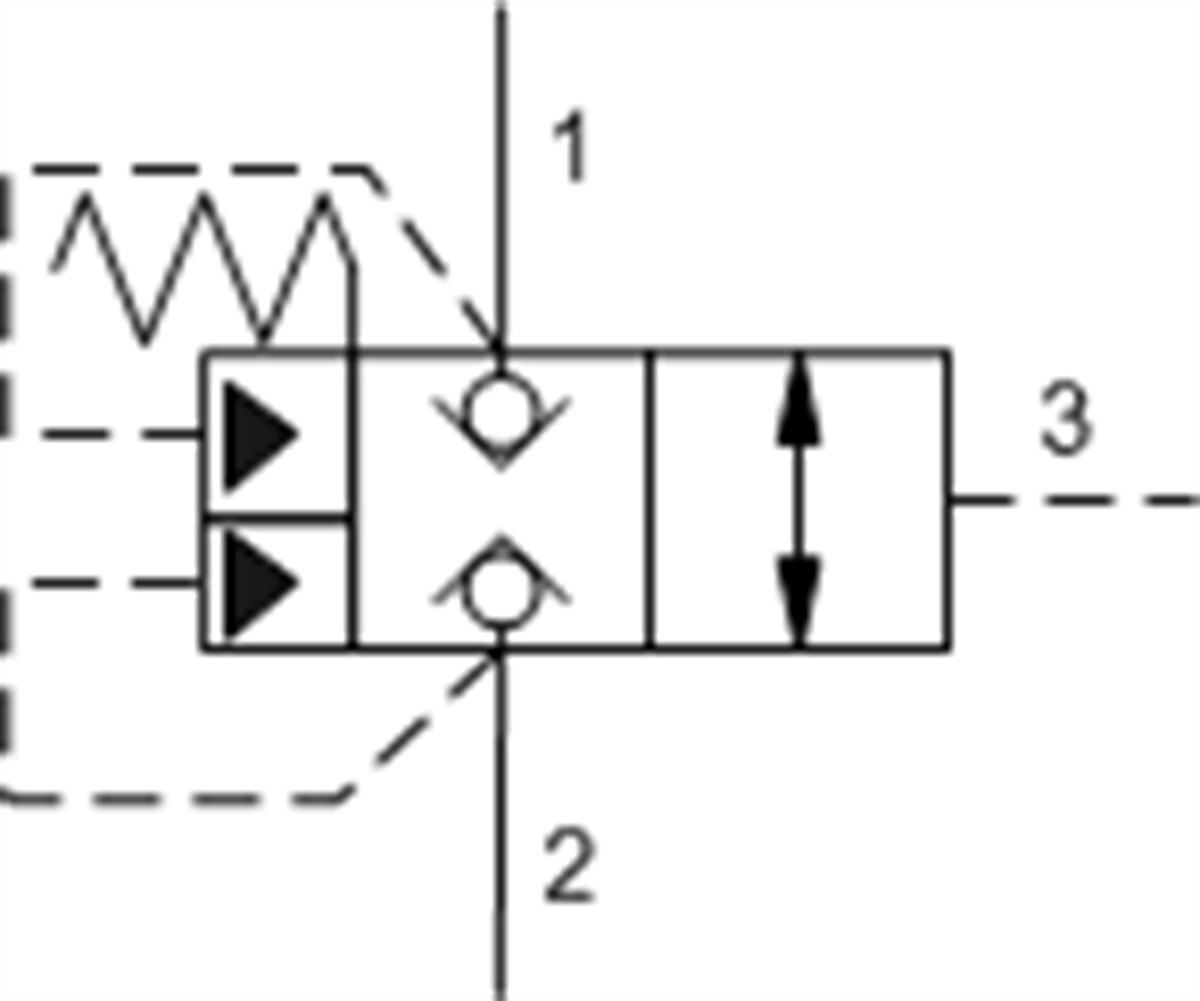

Pilot-to-open, spring-biased closed, unbalanced poppet logic element

:
LKFC

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-2A
Series 2
Capacity 30 gpm120 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@1000 psi0,7 cc/min.@70 bar
Pilot Volume Displacement .06 in³0,98 cc
Pilot Passage into Valve .035 in.0,9 mm
Area Ratio, A3 to A1 1.8:11.8:1
Area Ratio, A3 to A2 2.25:12.25:1
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Seal kit - Cartridge Buna: 990202007
Seal kit - Cartridge EPDM: 990202014
Seal kit - Cartridge Polyurethane: 990002002
Seal kit - Cartridge Viton: 990202006


LKFC
Düşük Geçirgenlik
0-150 lpm
