FVCA8AN

Fiyat : $99.01

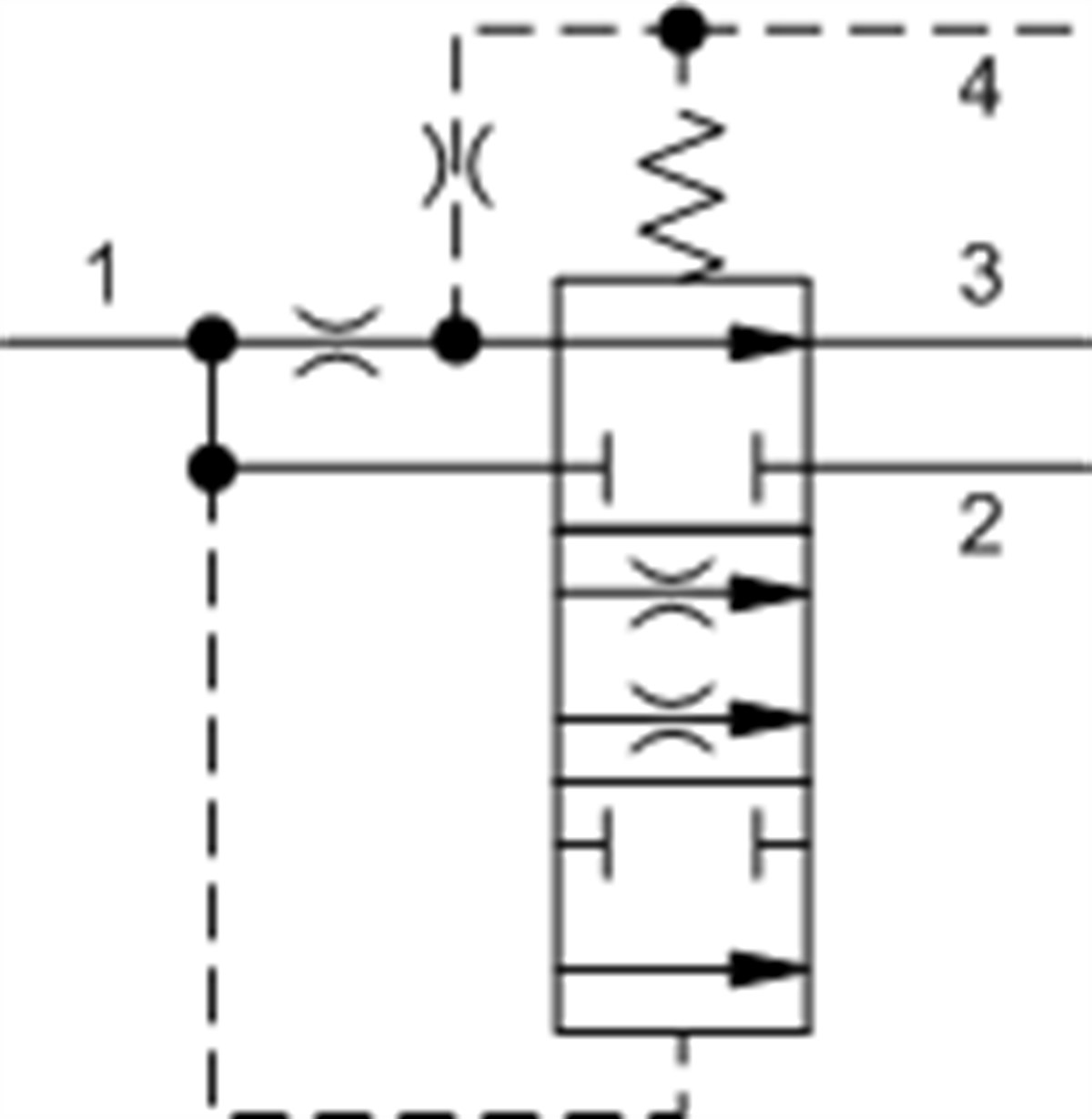

Ventable, fixed-orifice, bypass/restrictive, priority flow control valve

:
FVCA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-21A
Series 1
Capacity 6 gpm23 L/min.
Maximum Operating Pressure 5000 psi350 bar
Nominal Vent Flow 46 in³/min.0,75 L/min.
Maximum Input Flow 15 gpm60 L/min.
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990021007
Seal kit - Cartridge Polyurethane: 990021002
Seal kit - Cartridge Viton: 990021006


FVCA
Düşük Geçirgenlik
0-150 lpm
