FVCA8AN

Fiyat : $99.01

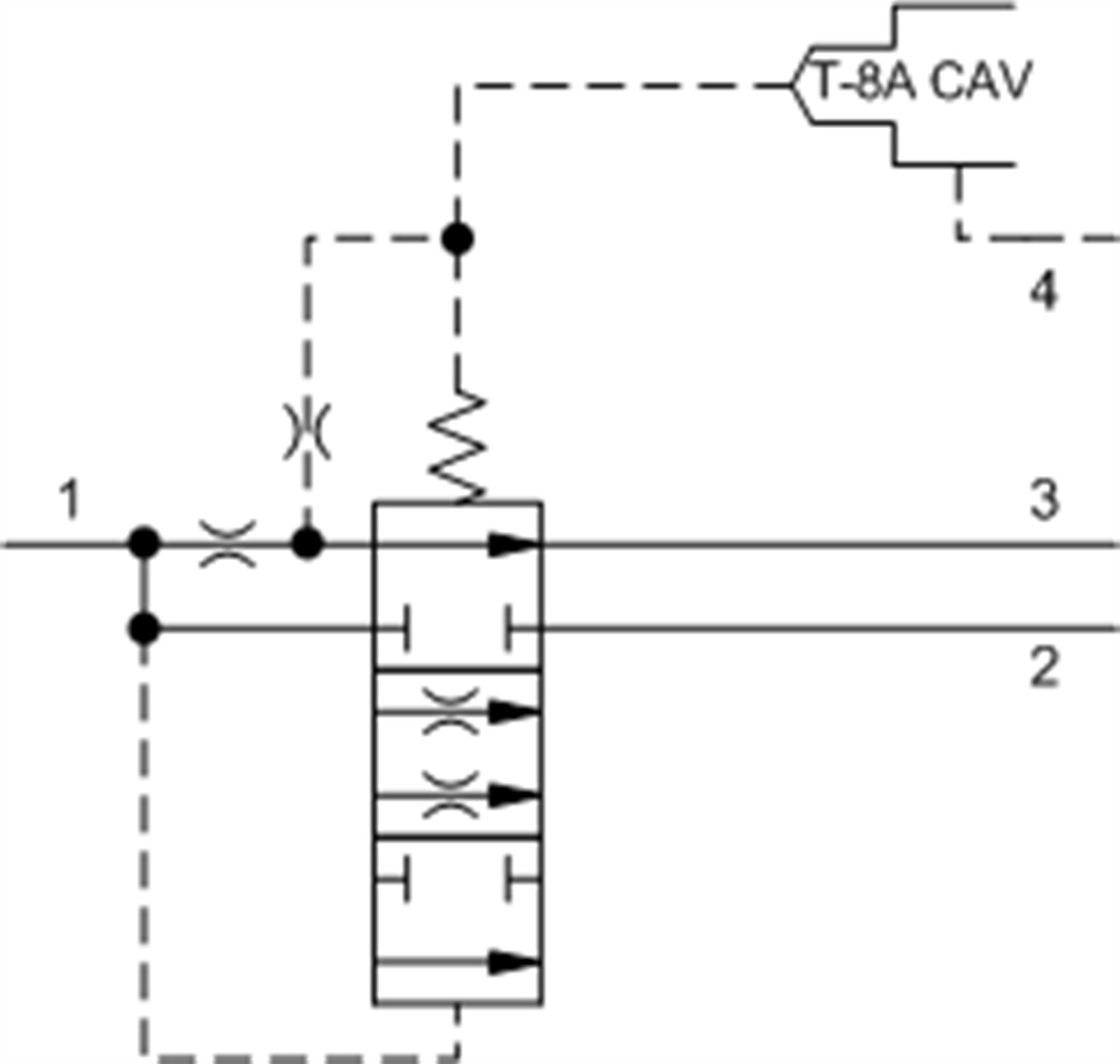

Ventable, fixed-orifice, bypass/restrictive, priority flow control valve with integral T-8A control cavity

:
FVCA8

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-21A
Series 1
Capacity 6 gpm23 L/min.
Maximum Operating Pressure 5000 psi350 bar
Nominal Vent Flow 46 in³/min.0,75 L/min.
Maximum Input Flow 15 gpm60 L/min.
Pilot Control Cavity T-8AT-8A
Pilot Control Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Pilot Control Valve Hex Size 7/8 in.22,2 mm
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .30 lb0,15 kg
Seal kit - Cartridge Buna: 990021007
Seal kit - Cartridge Polyurethane: 990021002
Seal kit - Cartridge Viton: 990021006


FVCA8
Düşük Geçirgenlik
0-150 lpm
