FSESXAN

Fiyat : $434.80

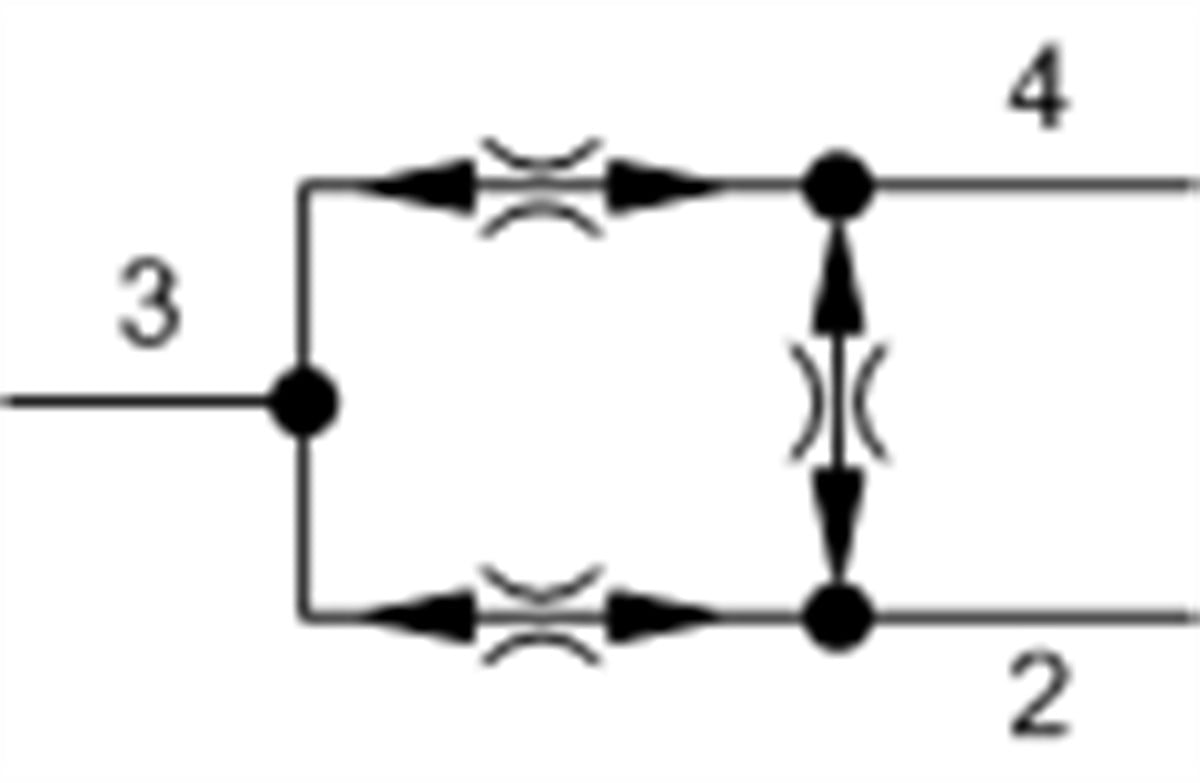

Synchronizing, flow divider-combiner valve

:
FSES

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-33A
Series 3
Capacity 6 - 30 gpm23 - 120 L/min.
Maximum Operating Pressure 5000 psi350 bar
Divisional Accuracy at Minimum Input Flow 50% ±4.5%50% ±4.5%
Divisional Accuracy at Max Input Flow 50% ±2.5%50% ±2.5%
Pressure Drop at Minimum Rated Input Flow 30 psi2 bar
Pressure Drop at Maximum Rated Input Flow 350 psi24 bar
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Model Weight 1.40 lb0,65 kg
Seal kit - Cartridge Buna: 990033007
Seal kit - Cartridge Polyurethane: 990033002
Seal kit - Cartridge Viton: 990033006


FSES
Düşük Geçirgenlik
0-150 lpm
