FSCAXAN

Fiyat : $169.23

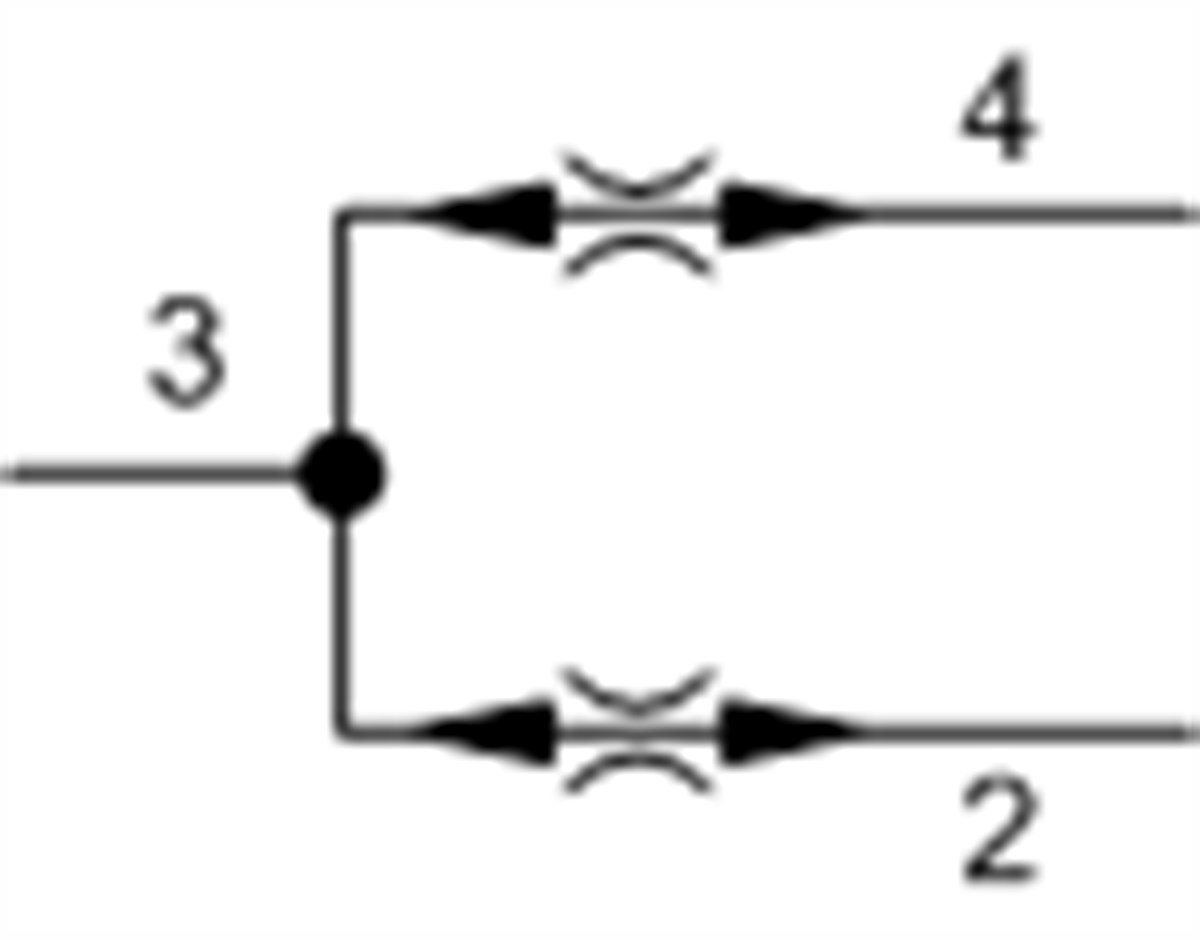

Closed center, flow divider-combiner valve

:
FSCA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-31A
Series 1
Capacity 1.5 - 8 gpm6 - 30 L/min.
Maximum Operating Pressure 5000 psi350 bar
Divisional Accuracy at Minimum Input Flow 50% ±4.5%50% ±4.5%
Divisional Accuracy at Max Input Flow 50% ±2.5%50% ±2.5%
Pressure Drop at Minimum Rated Input Flow 30 psi2 bar
Pressure Drop at Maximum Rated Input Flow 350 psi24 bar
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .60 lb0,30 kg
Seal kit - Cartridge Buna: 990031007
Seal kit - Cartridge Polyurethane: 990031002
Seal kit - Cartridge Viton: 990031006


FSCA
Düşük Geçirgenlik
0-150 lpm
