FPHKXCN

Fiyat : $308.71

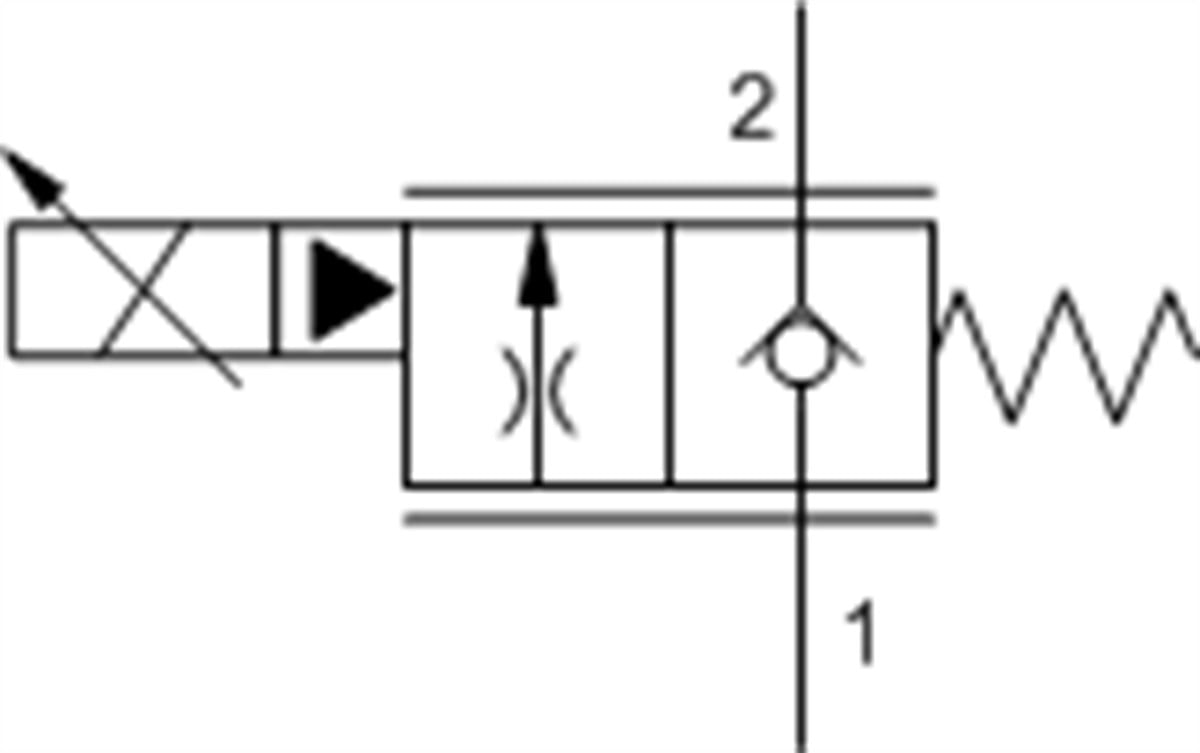

Pilot-operated, normally closed, electro-proportional throttle with reverse flow check

:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
FPHK

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-16A
Series 3
Capacity 60 gpm240 L/min.
Recommended dither frequency 100 Hz100 Hz
Maximum Valve Leakage at 110 SUS (24 cSt) 20 drops/min.@5000 psi20 drops/min.@5000 psi
Manual Override Force Requirement 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1
Deadband, nominal (as a percentage of input) 25%25%
Manual Override Stroke .06 in.1,50 mm
Solenoid Tube Diameter .75 in.19 mm
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Model Weight 1.50 lb0,70 kg
Model Weight (with coil) 2.00 lb2.00 lb
Seal kit - Cartridge Buna: 990016007
Seal kit - Cartridge EPDM: 990016014
Seal kit - Cartridge Polyurethane: 990016002
Seal kit - Cartridge Viton: 990016006
Seal and nut kit - Coil Viton: 990770006
Back to Top


FPHK
Orta Geçirgenlik
150-300 lpm
