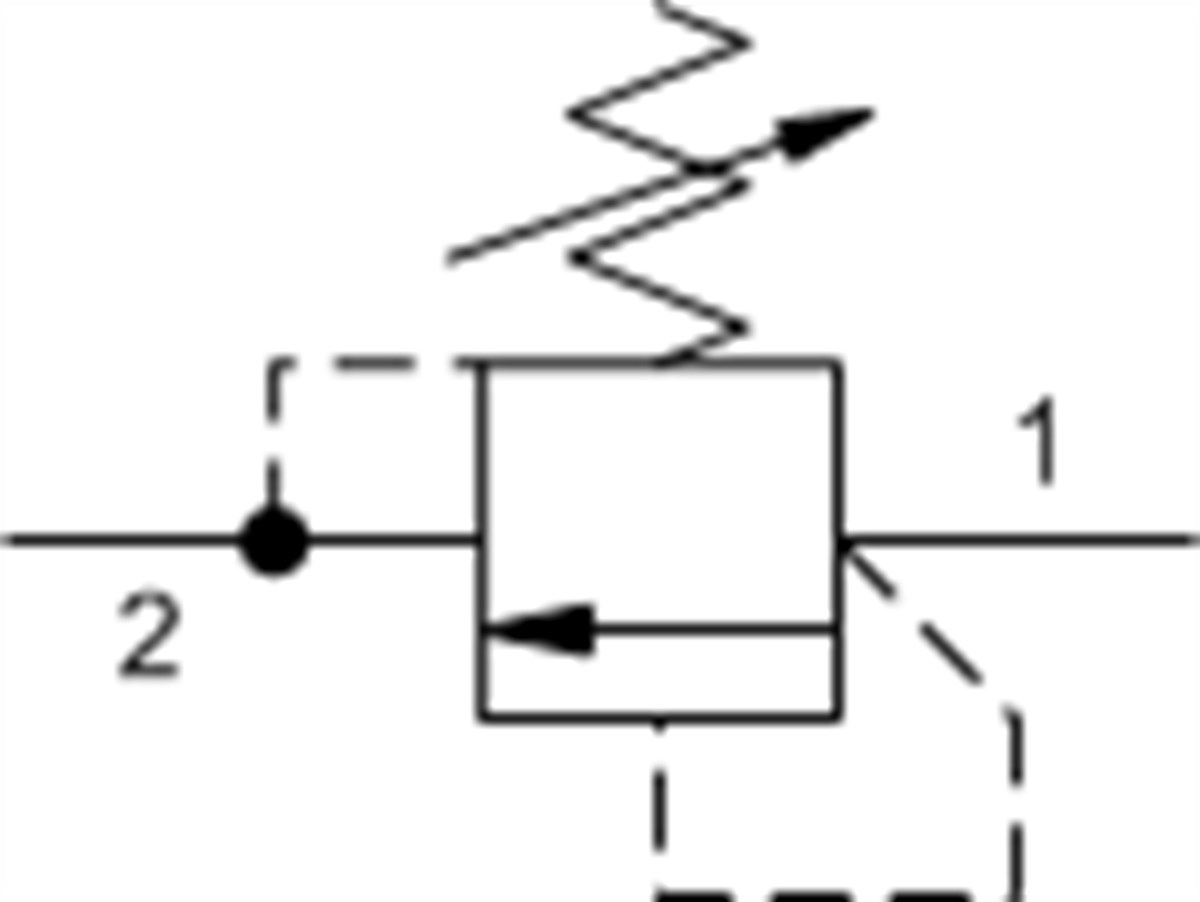

RDJALAN Direct-acting relief valve

RDJALAN Direct-acting relief valve

Price : $0.00
:
Cavity T-18A
Series 4
Capacity 760 L/min.
Maximum Operating Pressure 350 bar
Factory Pressure Settings Established at 15 L/min.
Maximum Valve Leakage at Reseat 0,7 cc/min.
Response Time - Typical 2 ms
Reseat >90% of setting
Adjustment - No. of CW Turns from Min. to Max. setting 6
Valve Hex Size 41,3 mm
Valve Installation Torque 474 - 508 Nm
Adjustment Screw Internal Hex Size 4 mm
Locknut Hex Size 15 mm
Locknut Torque 9 - 10 Nm
Model Weight 1,50 kg
Seal kit - Cartridge Buna: 990318007
Seal kit - Cartridge EPDM: 990318014
Seal kit - Cartridge Viton: 990318006

Sun Hydraulics RDJALAN — Pressure Control Valves.

Price and lead time for this product are provided on request. Use the Request a Quote button on this page to send your enquiry with quantity and delivery location.

Hi-Des Hydraulics supplies hydraulic valves, pumps, fittings and system components to industrial customers in Turkey and Europe. Where suitable, a Hi-Des equivalent is also offered.

High Flow Rate
300-1000 lpm
