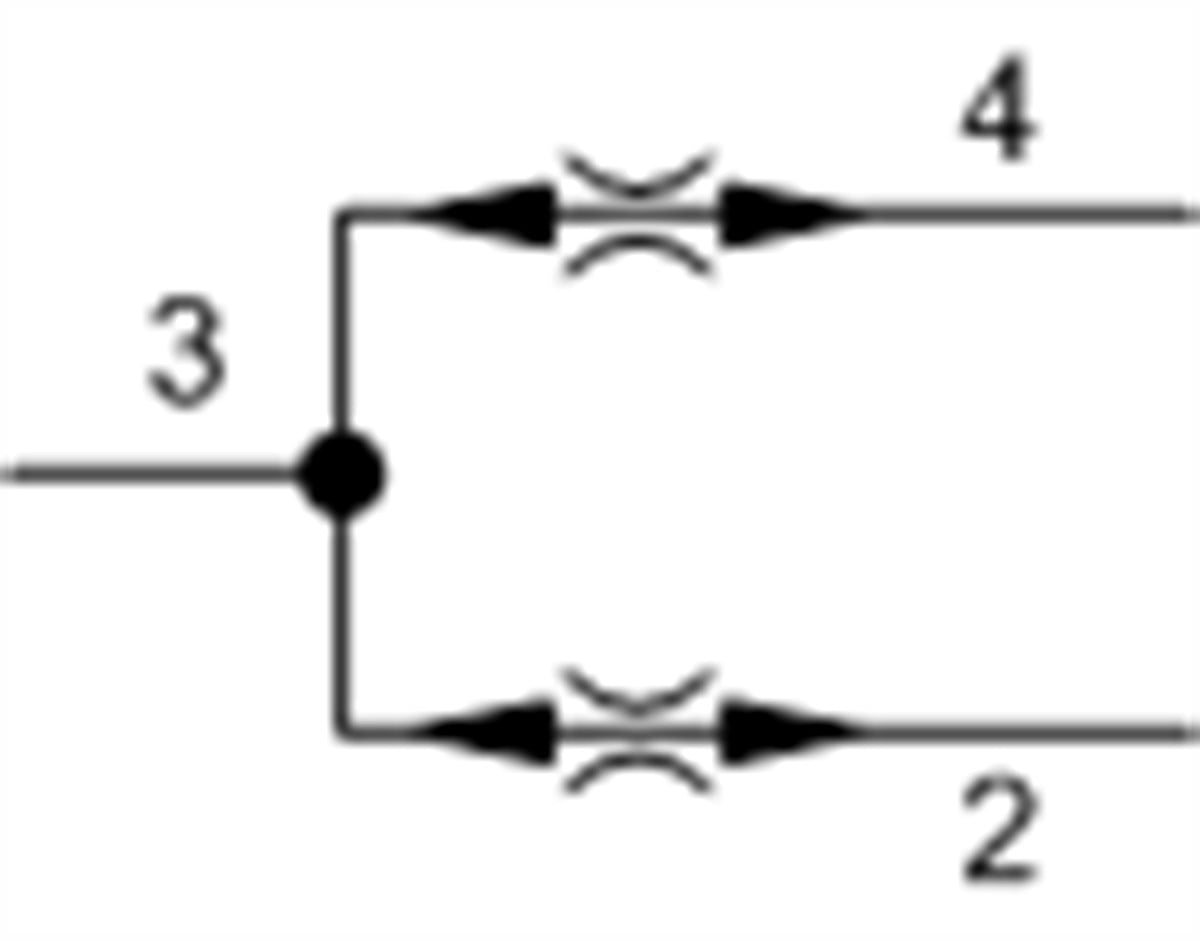

FSDHXAN High capacity, closed center, flow divider-combiner valve

FSDHXAN High capacity, closed center, flow divider-combiner valve

Price : $0.00
:
Cavity T-32A
Series 2
Capacity 15 - 65 L/min.
Maximum Operating Pressure 350 bar
Divisional Accuracy at Minimum Input Flow 50% ±6.5%
Divisional Accuracy at Max Input Flow 50% ±3.5%
Pressure Drop at Minimum Rated Input Flow 2 bar
Pressure Drop at Maximum Rated Input Flow 24 bar
Valve Hex Size 28,6 mm
Valve Installation Torque 61 - 68 Nm
Model Weight 0,30 kg
Seal kit - Cartridge Buna: 990032007
Seal kit - Cartridge Polyurethane: 990032002
Seal kit - Cartridge Viton: 990032006

Sun Hydraulics FSDHXAN — Flow Control Valves.

Price and lead time for this product are provided on request. Use the Request a Quote button on this page to send your enquiry with quantity and delivery location.

Hi-Des Hydraulics supplies hydraulic valves, pumps, fittings and system components to industrial customers in Turkey and Europe. Where suitable, a Hi-Des equivalent is also offered.
