DVCP8FN

Fiyat : $182.93

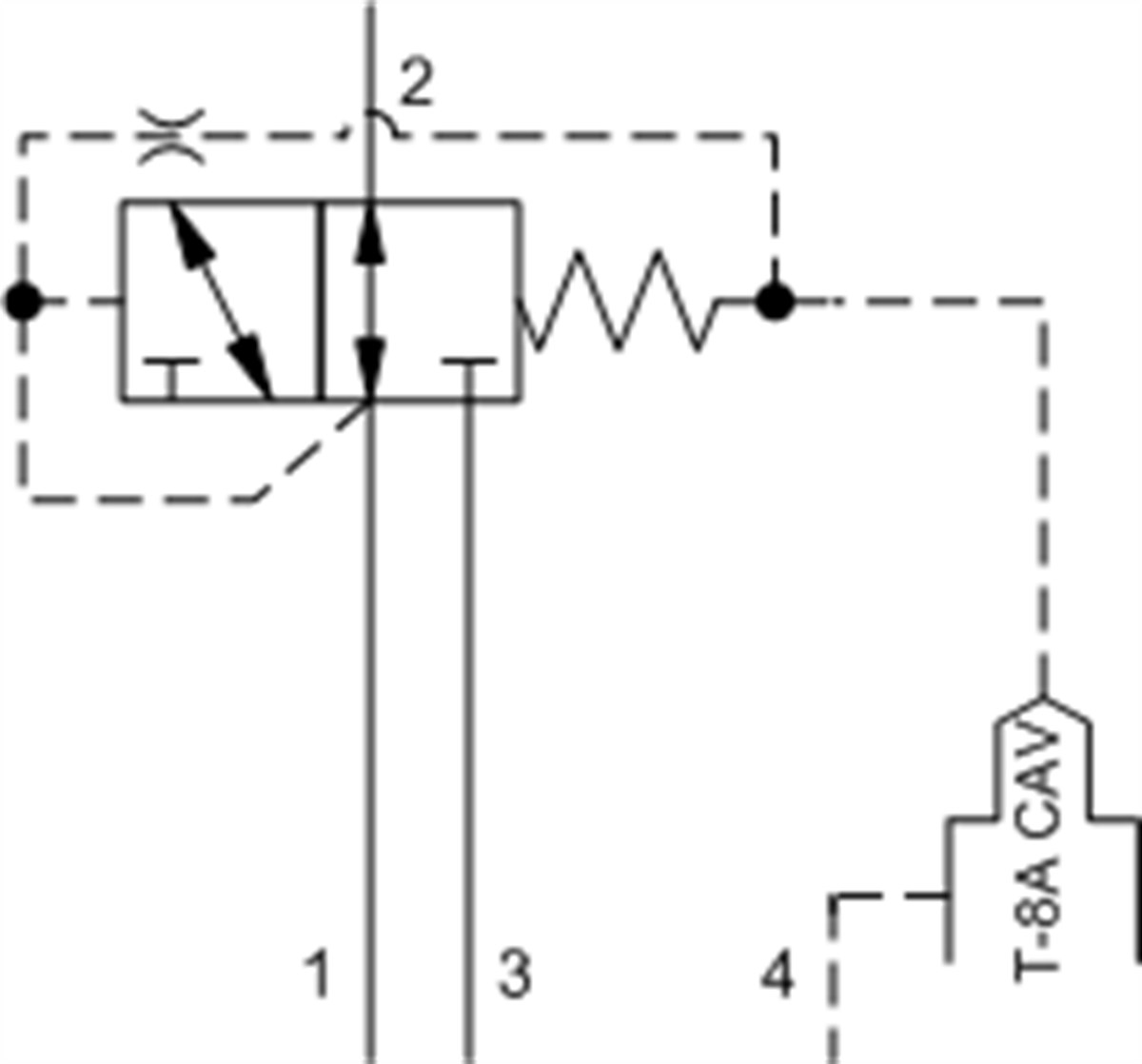

3-way, vent-to-operate, directional valve with drain to port 4 and integral T-8A control cavity (1 to 2 open, 3 blocked)

:
DVCP

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-22A
Series 2
Capacity 15 gpm60 L/min.
Maximum Operating Pressure 5000 psi350 bar
Control Pilot Flow 7 - 10 in³/min.0,11 - 0,16 L/min.
Maximum Valve Leakage at 110 SUS (24 cSt) 2 in³/min.@1000 psi30 cc/min.@70 bar
Pilot Control Cavity T-8AT-8A
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Model Weight .50 lb0,25 kg
Seal kit - Cartridge Buna: 990022007
Seal kit - Cartridge Polyurethane: 990022002
Seal kit - Cartridge Viton: 990022006


DVCP
Düşük Geçirgenlik
0-150 lpm
