DPCMLAN

Fiyat : $164.20

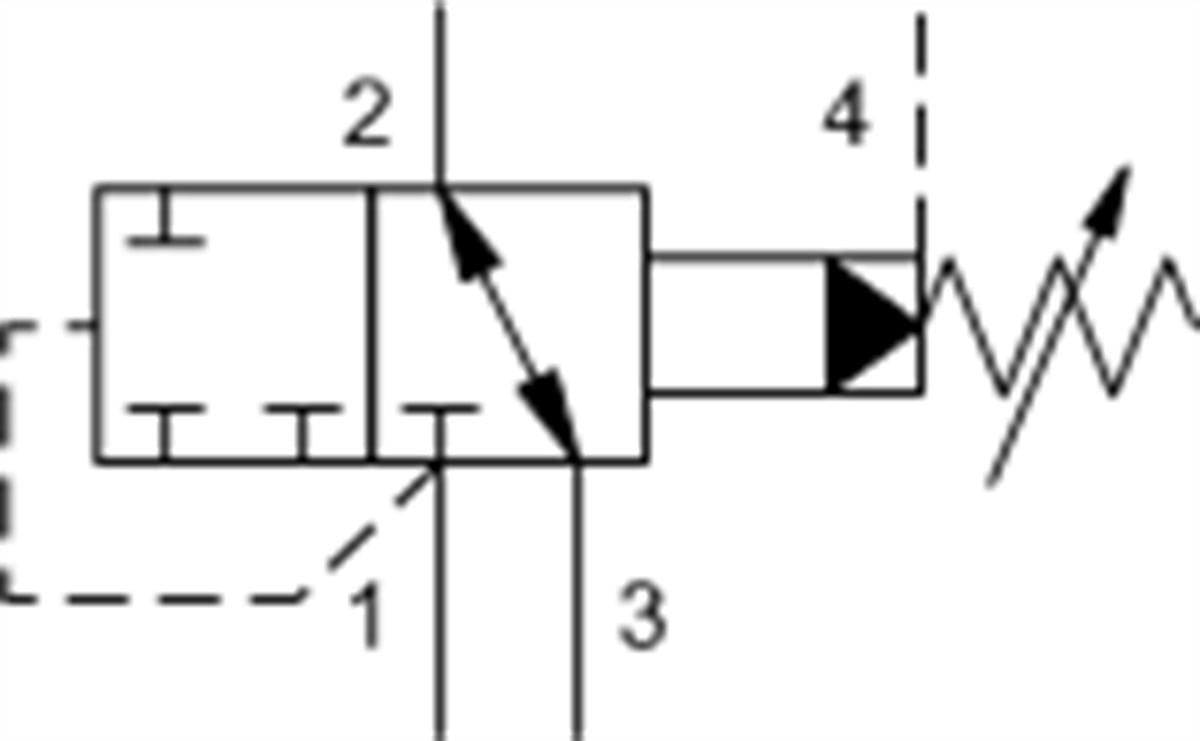

2-way, pilot-operated, directional valve with drain to port 4 - normally open

:
DPCM

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-22A
Series 2
Capacity 15 gpm60 L/min.
Maximum Operating Pressure 5000 psi350 bar
Factory Pressure Settings Established at 4 gpm15 L/min.
Control Pilot Flow 10 - 15 in³/min.0,16 - 0,25 L/min.
Maximum Valve Leakage at 110 SUS (24 cSt) 1 in³/min.@1000 psi15 cc/min.@70 bar
Adjustment - No. of CW Turns from Min. to Max. setting 55
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .60 lb0,30 kg
Seal kit - Cartridge Buna: 990022007
Seal kit - Cartridge Polyurethane: 990022002
Seal kit - Cartridge Viton: 990022006


DPCM
Düşük Geçirgenlik
0-150 lpm
