DNDADDE

Fiyat : $674.89

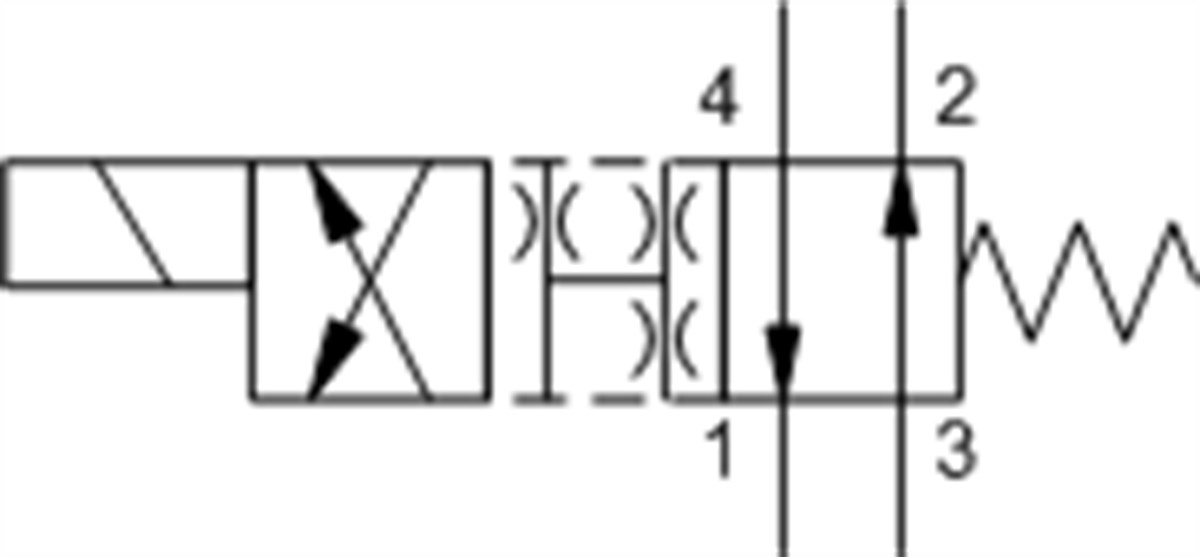

4-way, 2-position, solenoid-operated directional spool valve

:
DNDA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-31A
Series 1
Capacity 10 gpm40 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 in³/min.@3000 psi160 cc/min.@210 bar
Manual Override Force Requirement 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1
Manual Override Stroke .10 in.2,5 mm
Response Time - Typical 50 ms50 ms
Switching Frequency 15,000 max. cycles/hr15,000 max. cycles/hr
Solenoid Tube Diameter .75 in.19 mm
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .60 lb0,30 kg
Seal kit - Cartridge Buna: 990431007
Seal kit - Cartridge EPDM: 990431014
Seal kit - Cartridge Viton: 990431006
Seal and nut kit - Coil Viton: 990770006


DNDA
Düşük Geçirgenlik
0-150 lpm
