DLDFDCV

Fiyat : $120.85

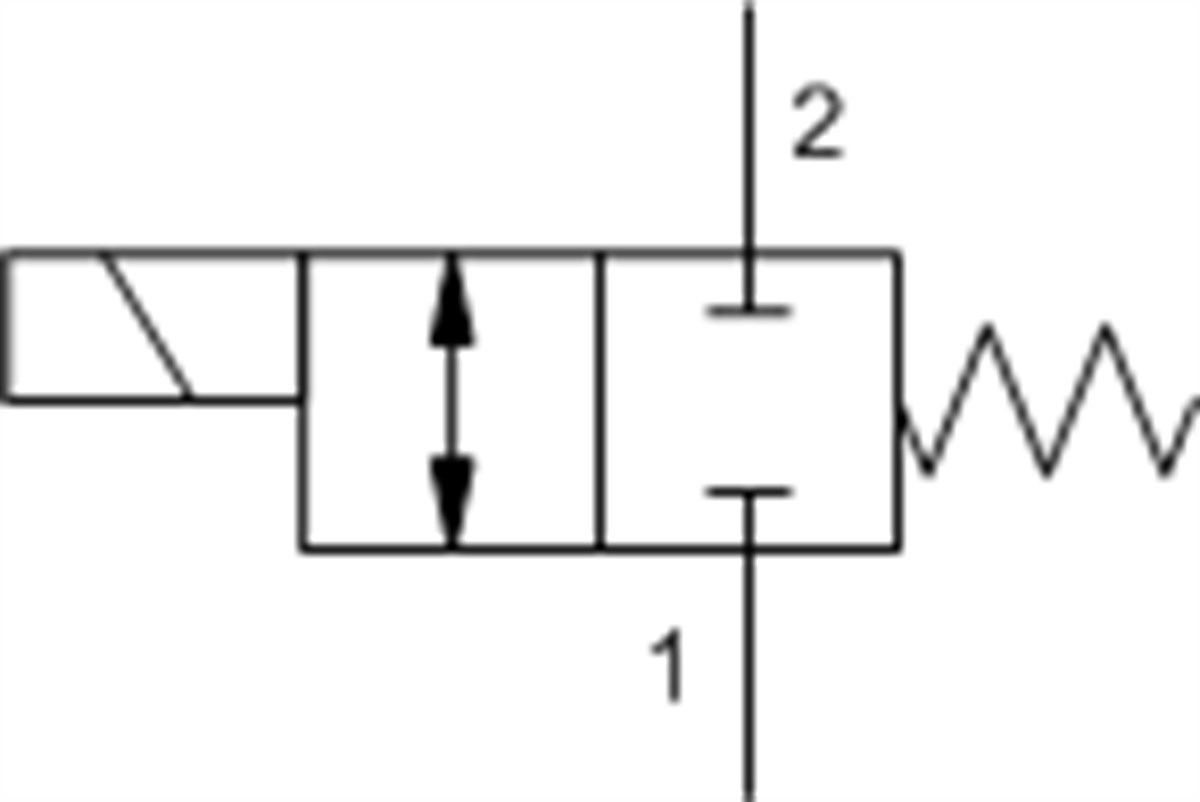

2-way, solenoid-operated directional spool valve (740 Series)

:
DLDF

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-13A
Series 1
Capacity 12 gpm45 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 5 in³/min.@3000 psi80 cc/min.@210 bar
Manual Override Force Requirement 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1
Manual Override Stroke .10 in.2,5 mm
Response Time - Typical 50 ms50 ms
Switching Frequency 15,000 max. cycles/hr15,000 max. cycles/hr
Solenoid Tube Diameter .63 in.16 mm
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .65 lb0,30 kg
Seal kit - Cartridge Buna: 990413007
Seal kit - Cartridge Viton: 990413006


DLDF
Düşük Geçirgenlik
0-150 lpm
