DFFA8DN

Fiyat : $292.65

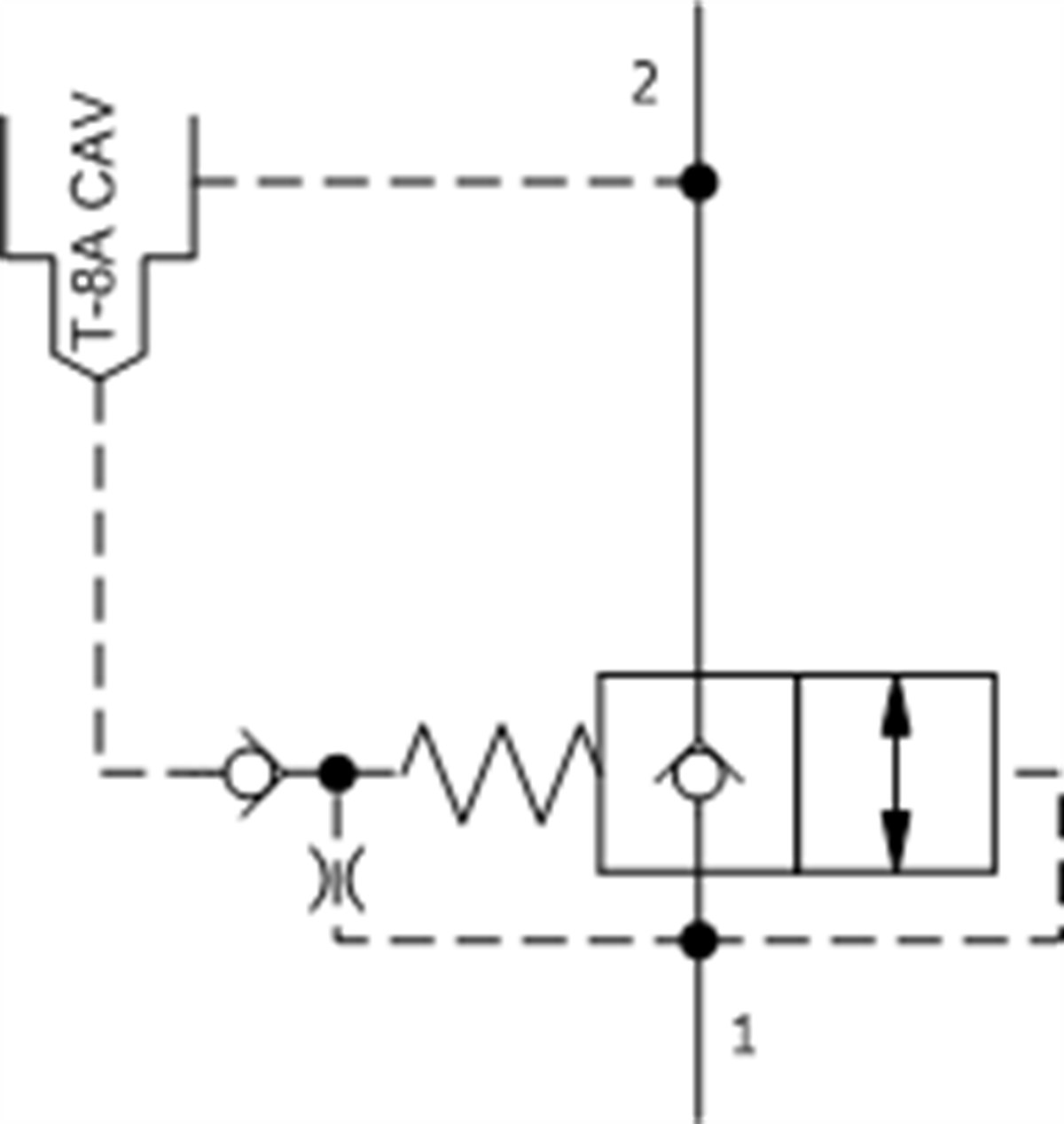

2-way, poppet directional valve with integral T-8A control cavity - control 1-2

:
DFFA8

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-18A
Series 4
Capacity 120 gpm480 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi0,7 cc/min.@350 bar
Pilot Control Cavity T-8AT-8A
Pilot Control Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Model Weight 1.10 lb0,50 kg
Seal kit - Cartridge Buna: 990018007
Seal kit - Cartridge EPDM: 990018014
Seal kit - Cartridge Polyurethane: 990018002
Seal kit - Cartridge Viton: 990018006


DFFA8
Yüksek Geçirgenlik
300-1000 lpm
