DBAFXCN

Fiyat : $114.00

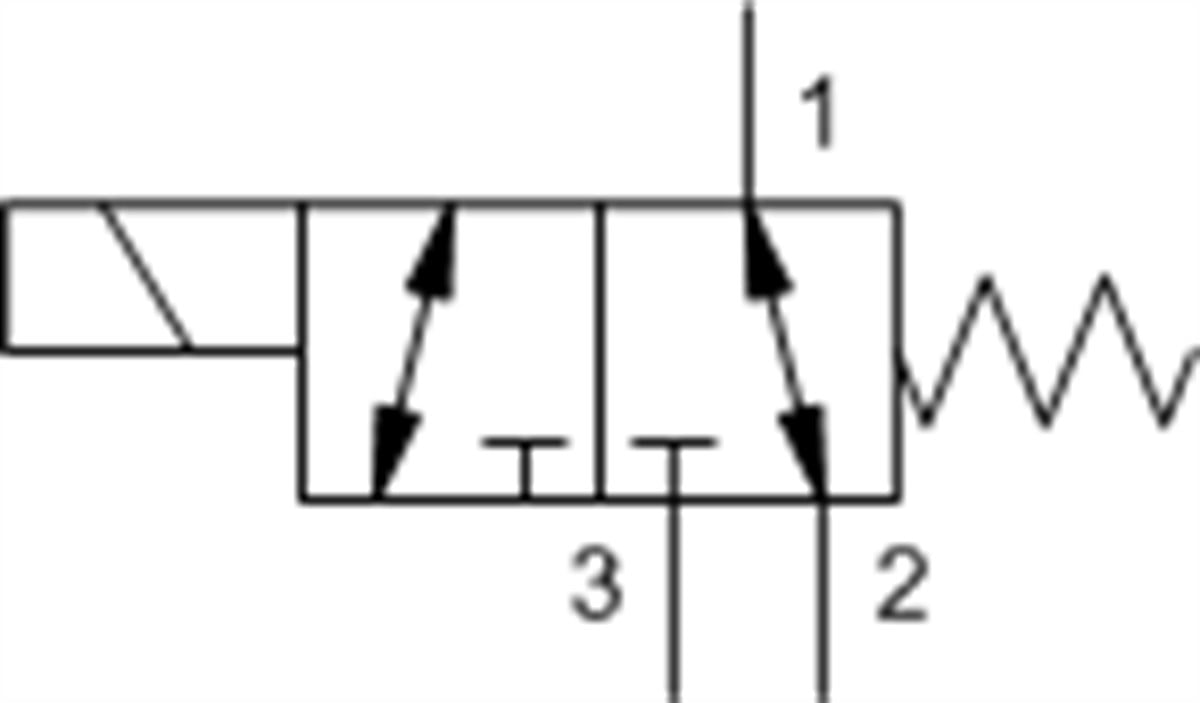

3-way solenoid-operated directional spool valve - pilot capacity (740 Series)

:
DBAF

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-9A
Series P
Capacity .25 gpm1 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 10 drops/min.@5000 psi0,7 cc/min.@350 bar
Manual Override Force Requirement 10 lbs/1000 psi @ Port 166 N/100 bar @ Port 1
Manual Override Stroke .10 in.2,5 mm
Response Time - Typical 50 ms50 ms
Switching Frequency 15,000 max. cycles/hr15,000 max. cycles/hr
Solenoid Tube Diameter .63 in.16 mm
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Seal kit - Cartridge Buna: 990009007
Seal kit - Cartridge EPDM: 990009014
Seal kit - Cartridge Polyurethane: 990009002
Seal kit - Cartridge Viton: 990009006


DBAF
Düşük Geçirgenlik
0-150 lpm
