CAIALHN

Fiyat : $539.81

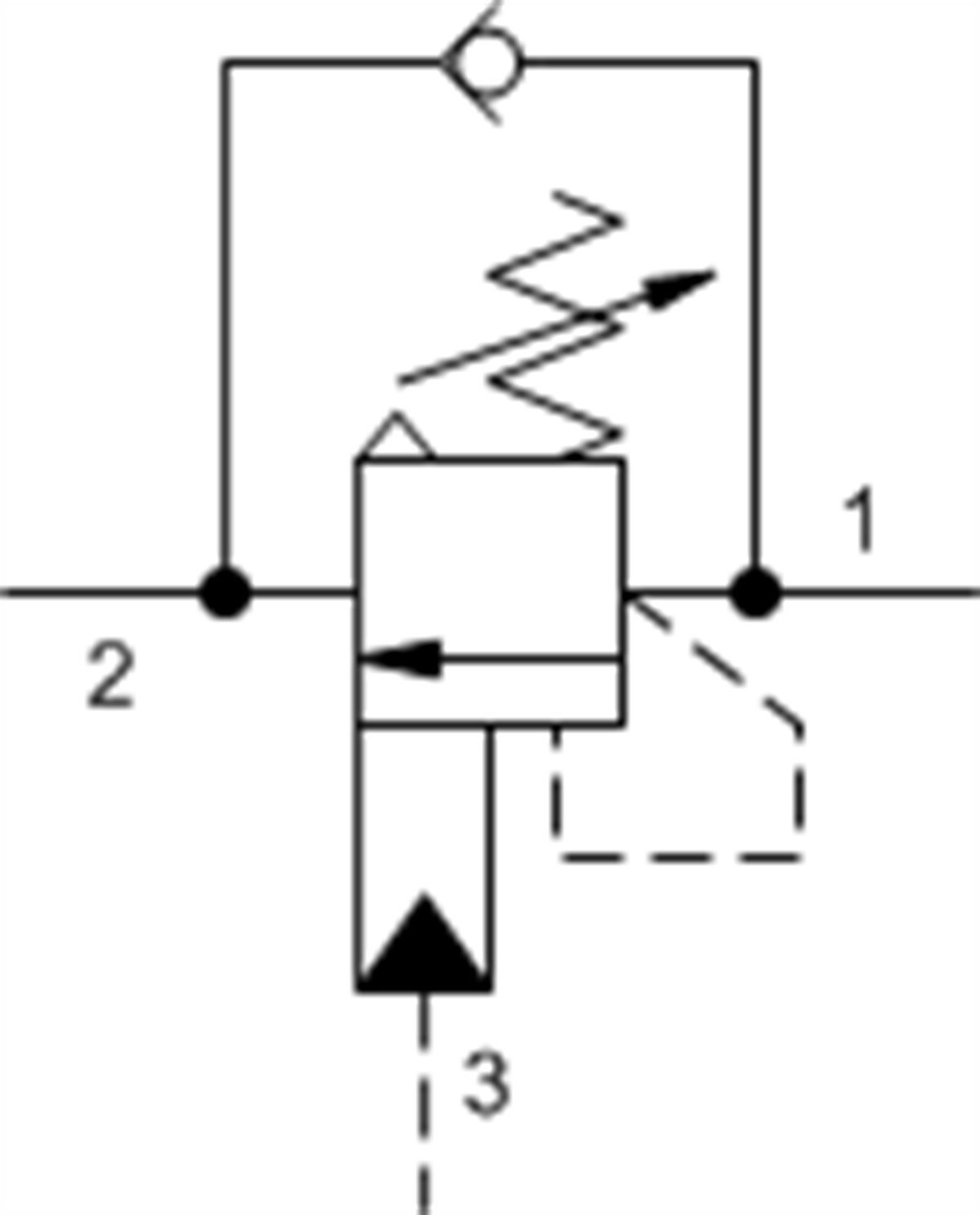

3:1 pilot ratio, vented counterbalance valve - atmospherically referenced

:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
CAIA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-19A
Series 4
Capacity 120 gpm480 L/min.
Pilot Ratio 3:13:1
Maximum Recommended Load Pressure at Maximum Setting 3075 psi215 bar
Maximum Setting 4000 psi280 bar
Factory Pressure Settings Established at 2 in³/min.30 cc/min.
Maximum Valve Leakage at Reseat 5 drops/min.0,3 cc/min.
Check Cracking Pressure 20 psi1,5 bar
Adjustment - No. of CCW Turns from Min. to Max. Setting 55
Operating Characteristic StandardStandard
Reseat >85% of setting>85% of setting
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 3.00 lb1,35 kg
Seal kit - Cartridge Buna: 990119007
Seal kit - Cartridge Polyurethane: 990119002
Seal kit - Cartridge Viton: 990119006
Back to Top


CAIA
Yüksek Geçirgenlik
300-1000 lpm
