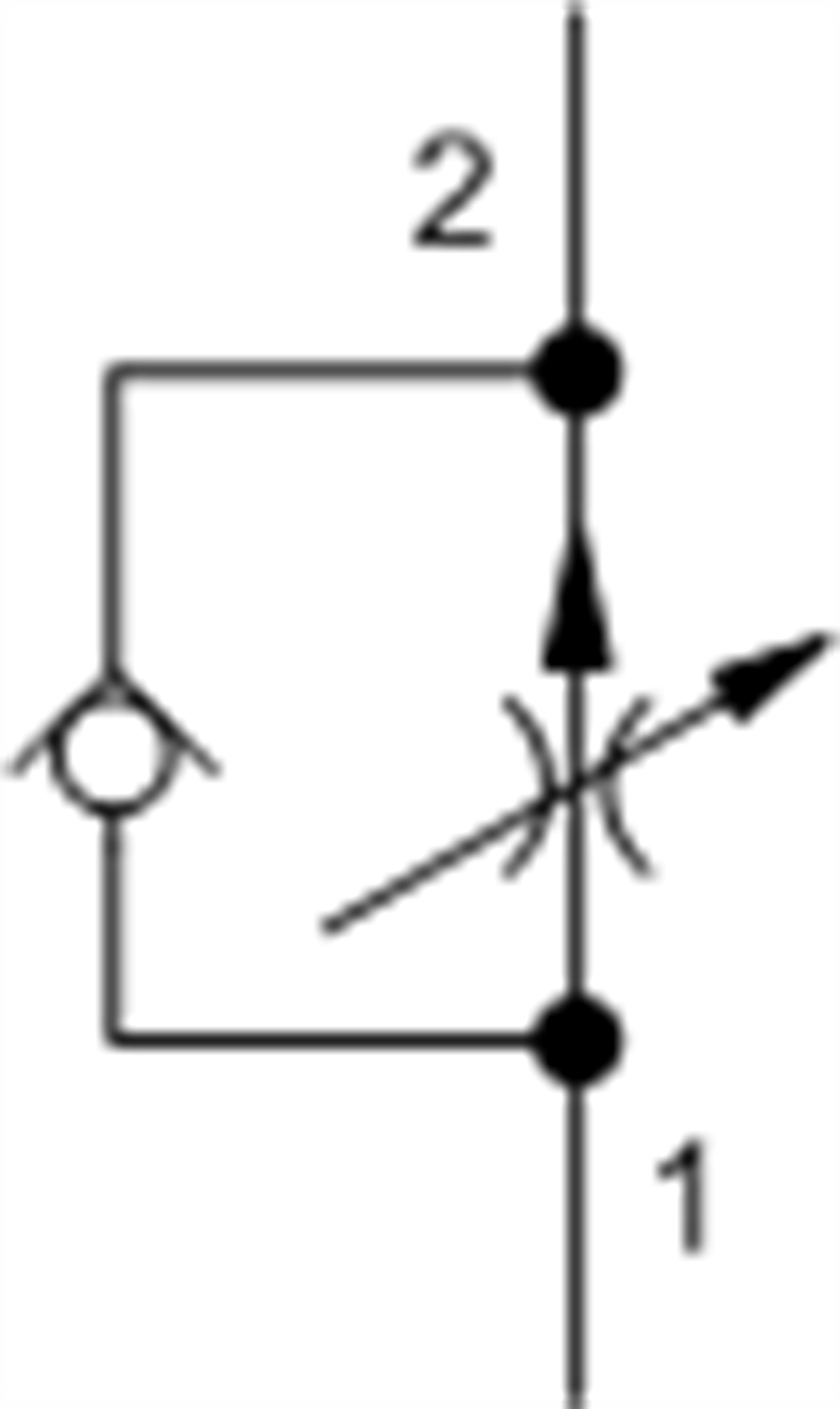

FDEALAN Fully adjustable pressure compensated flow control valve with reverse flow check

FDEALAN Fully adjustable pressure compensated flow control valve with reverse flow check

Price : $237.20
:
Add to Favorites
Add to My Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock
Recommend
Write a comment
FDEA

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-16A
Series 3
Capacity 25 gpm95 L/min.
Maximum Operating Pressure 5000 psi350 bar
Adjustment - No. of CCW Turns from Fully Closed to Fully Open 55
Valve Hex Size 1 1/4 in.31,8 mm
Valve Installation Torque 150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight 1.25 lb0,60 kg
Seal kit - Cartridge Buna: 990016007
Seal kit - Cartridge EPDM: 990016014
Seal kit - Cartridge Polyurethane: 990016002
Seal kit - Cartridge Viton: 990016006
Back to Top


FDEA
Low Flow Rate
0-150 lpm
